Model O 2 - Disassembly Guide

Tools required:

  • Glorious Model O V2

  • #0 Phillips Screwdriver

  • Plastic Pry Tool.

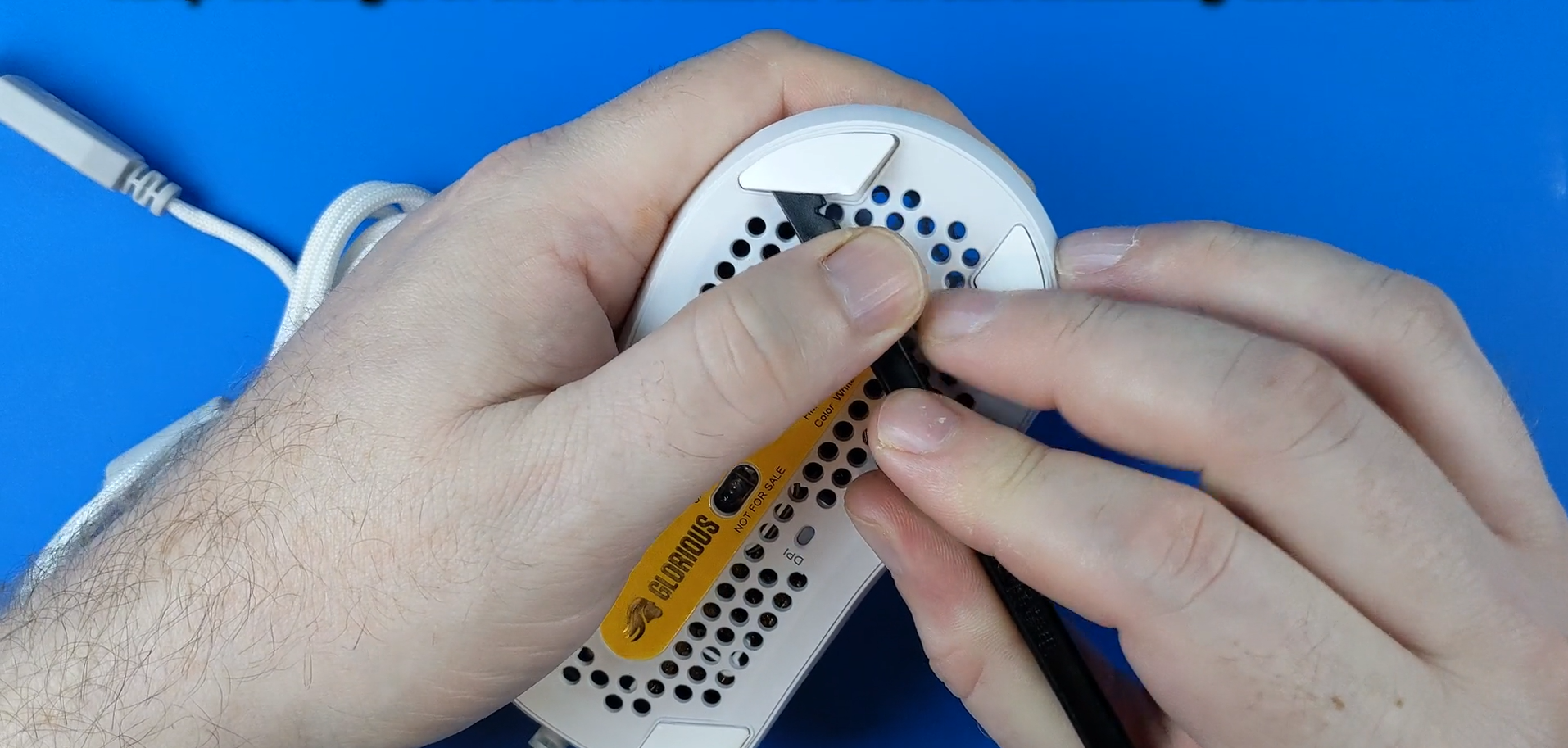

Step 1: Begin by removing all four mouse skates

  •   Keep the angle of the tool shallow to avoid scratching the mouse.

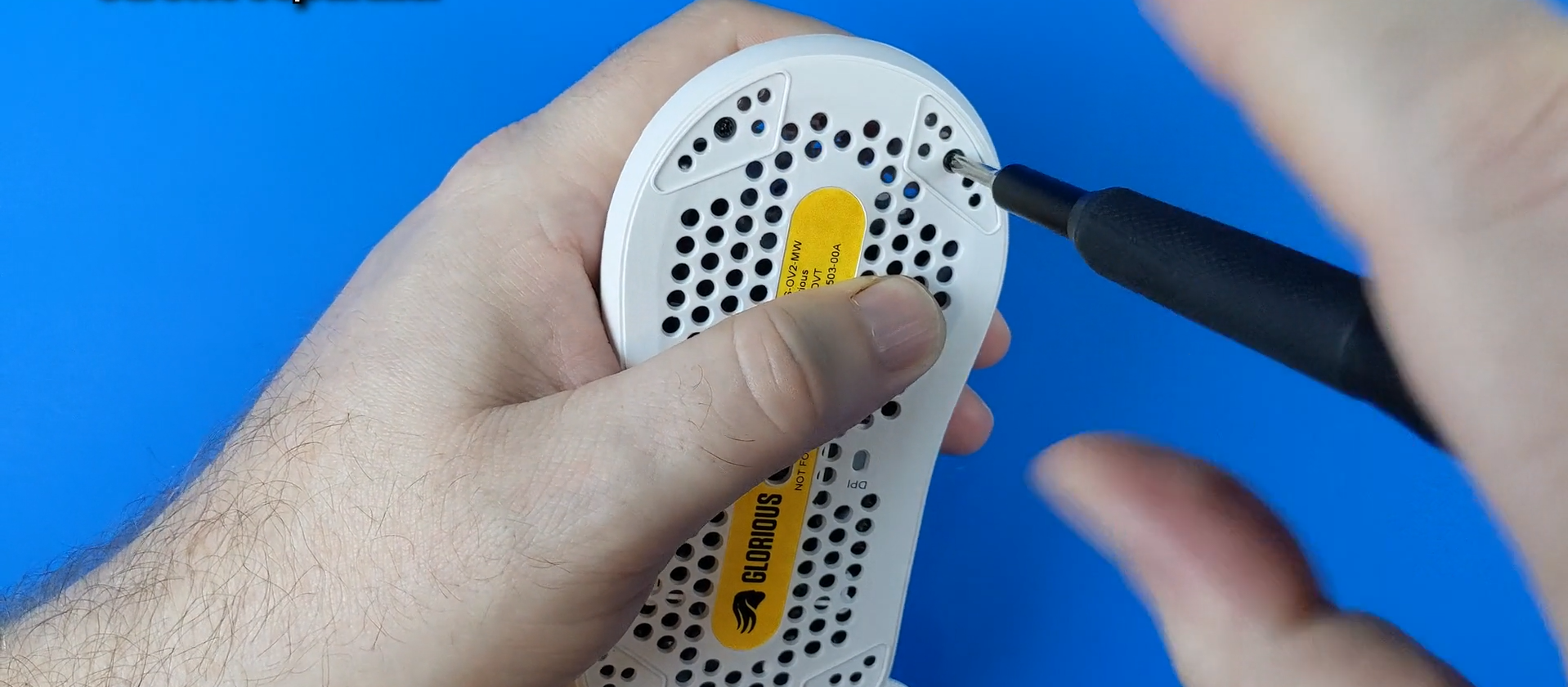

Step 2: Remove the four screws using a #0 Phillips screwdriver.

  • These screws are unique and cannot be interchanged.

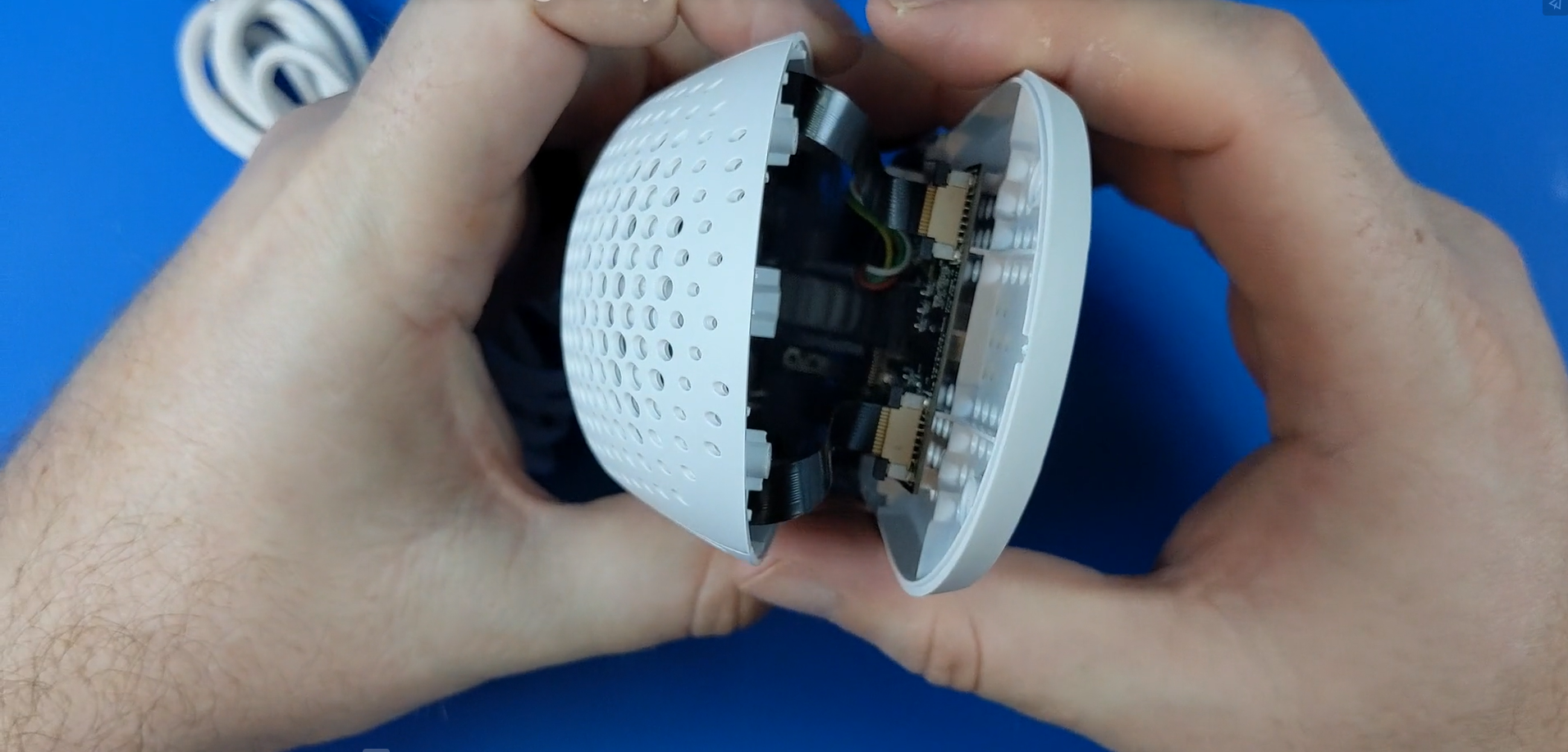

Step 3: Open the mouse gently to reveal the interior ribbon cables.

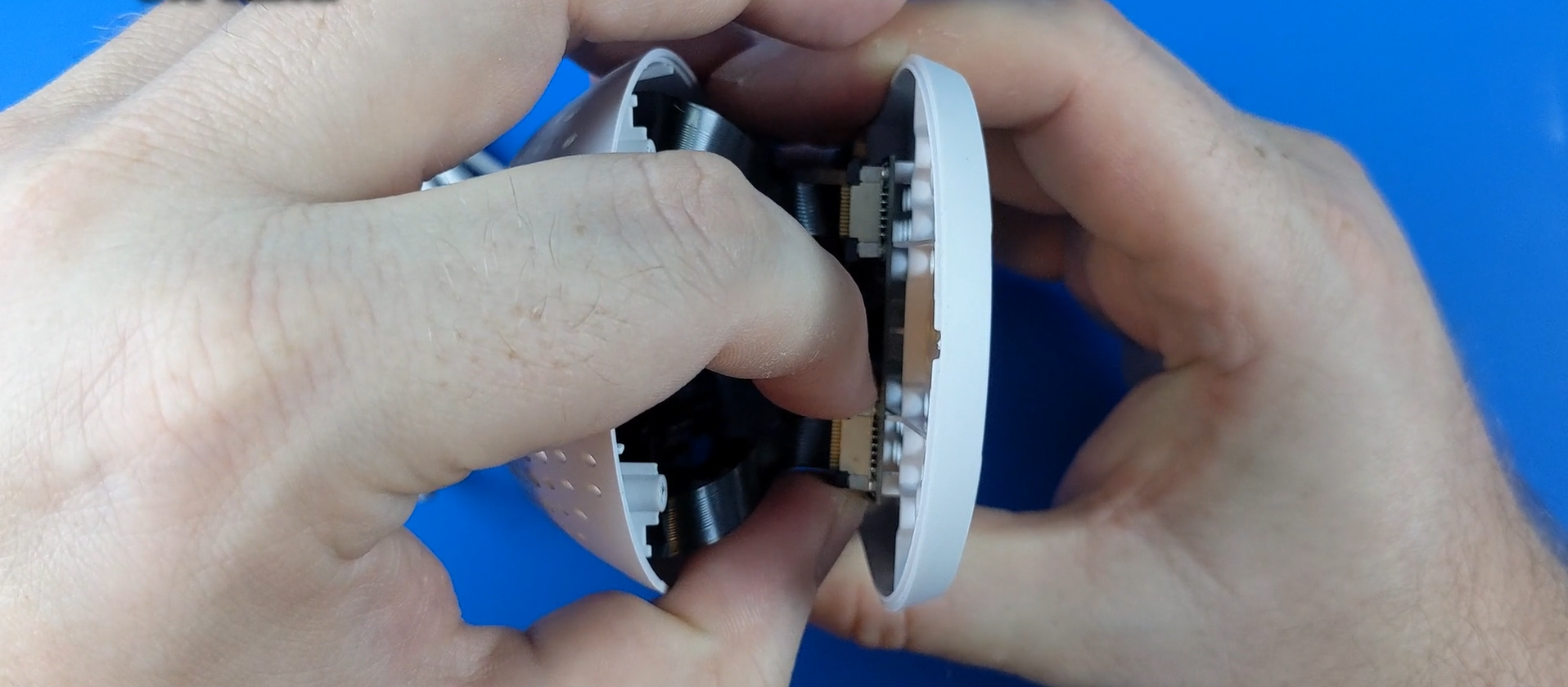

Step 4: Using your fingers, gently pull up on the locking tabs to release the cable.

  • Do this for both sides.

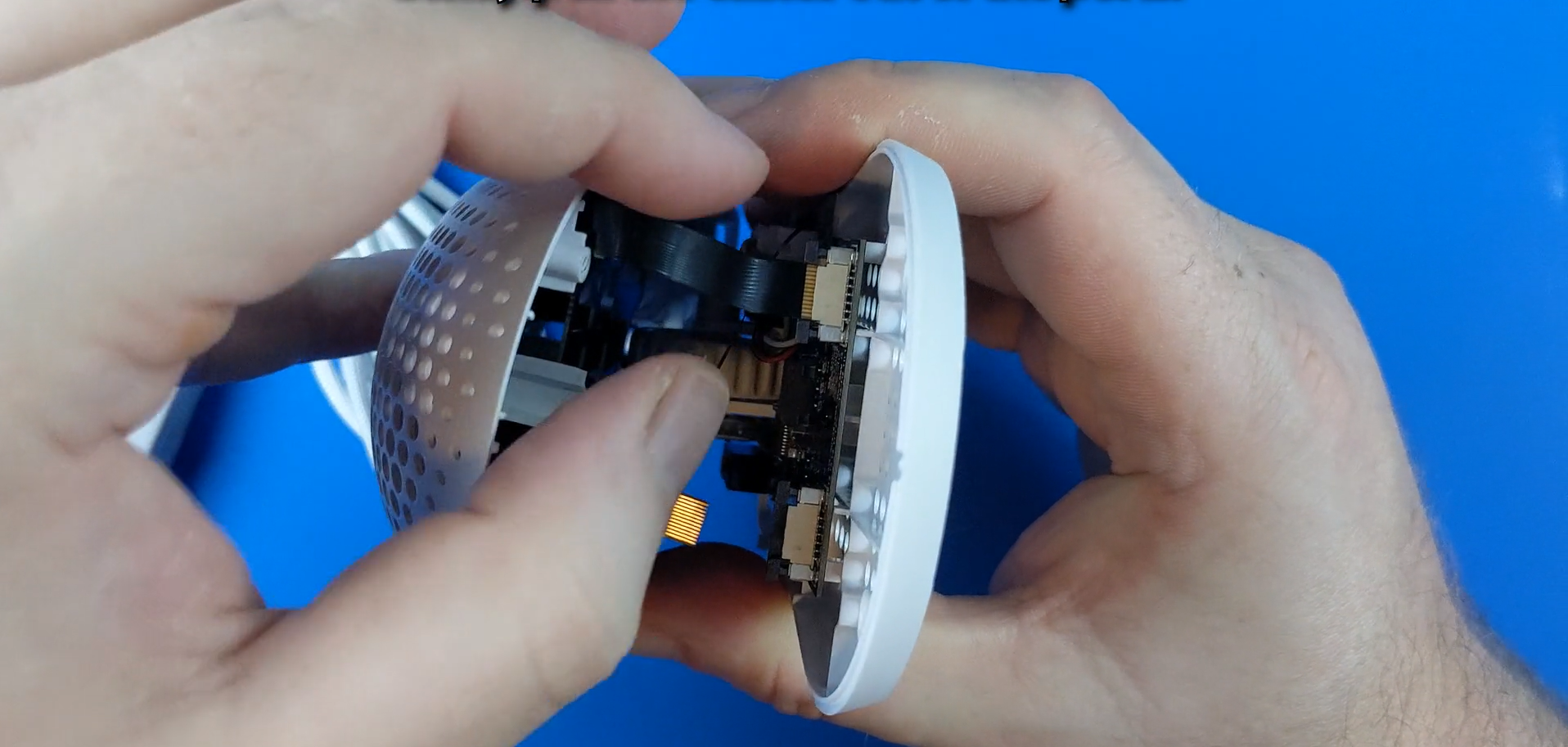

Step 5: Gently pull the cables out of the ports.

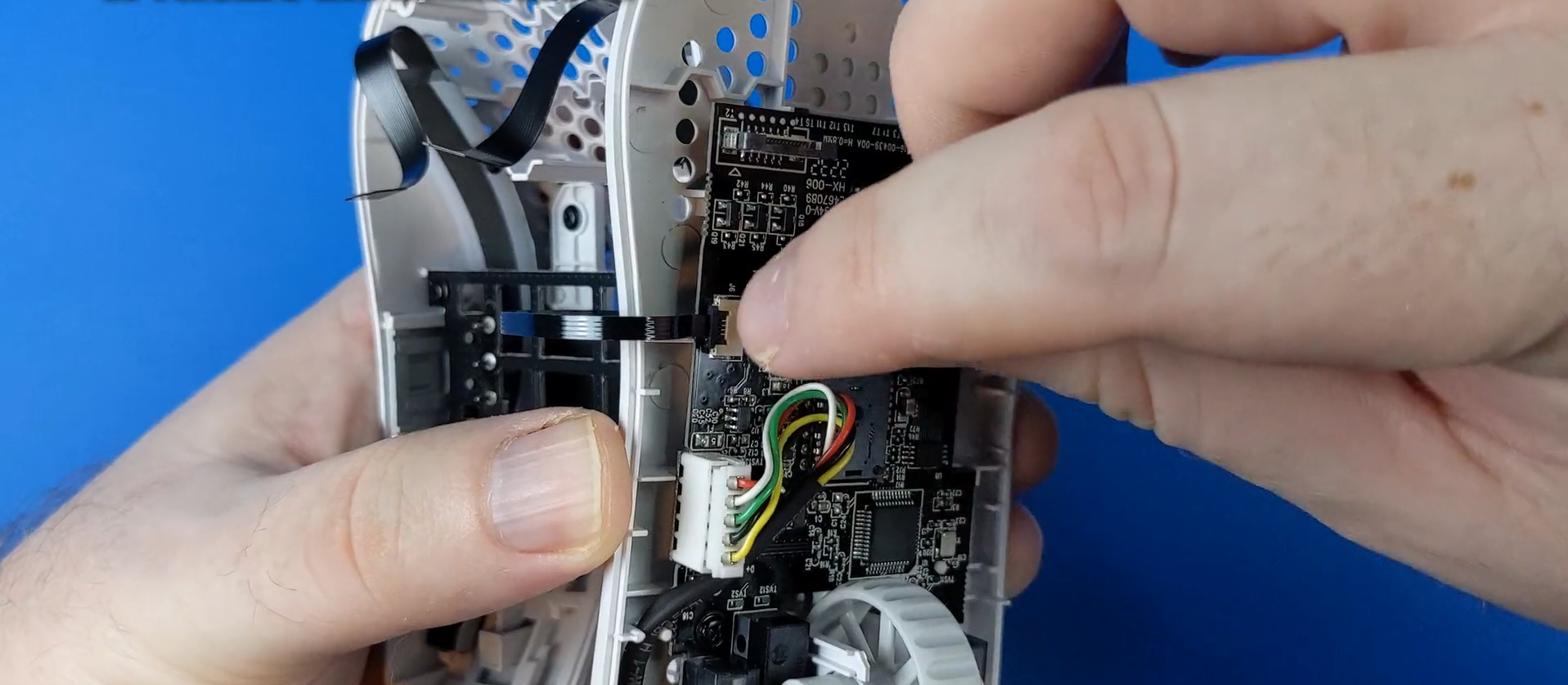

Step 6: Fully open the mouse and flip the small ribbon cable connector up to release the small cable.


Step 7: Remove the power cable from its anchor point.

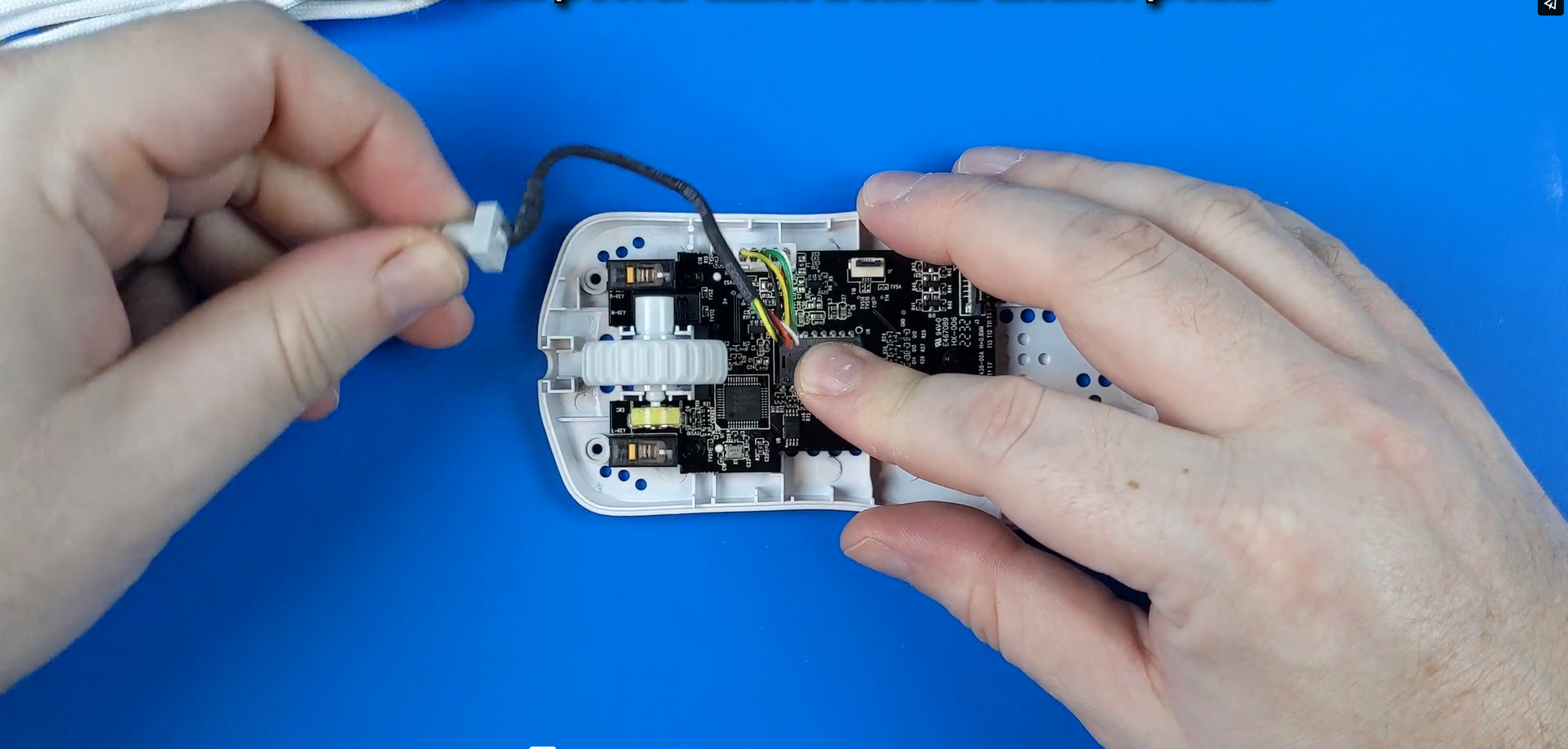

Step 8: Pull up on the plastic connector to disconnect the power cable from the sensor board.



Step 9: To reassemble the Mouse, follow these steps in reverse order.
