GMMK Numpad - Removing the Switch Plate

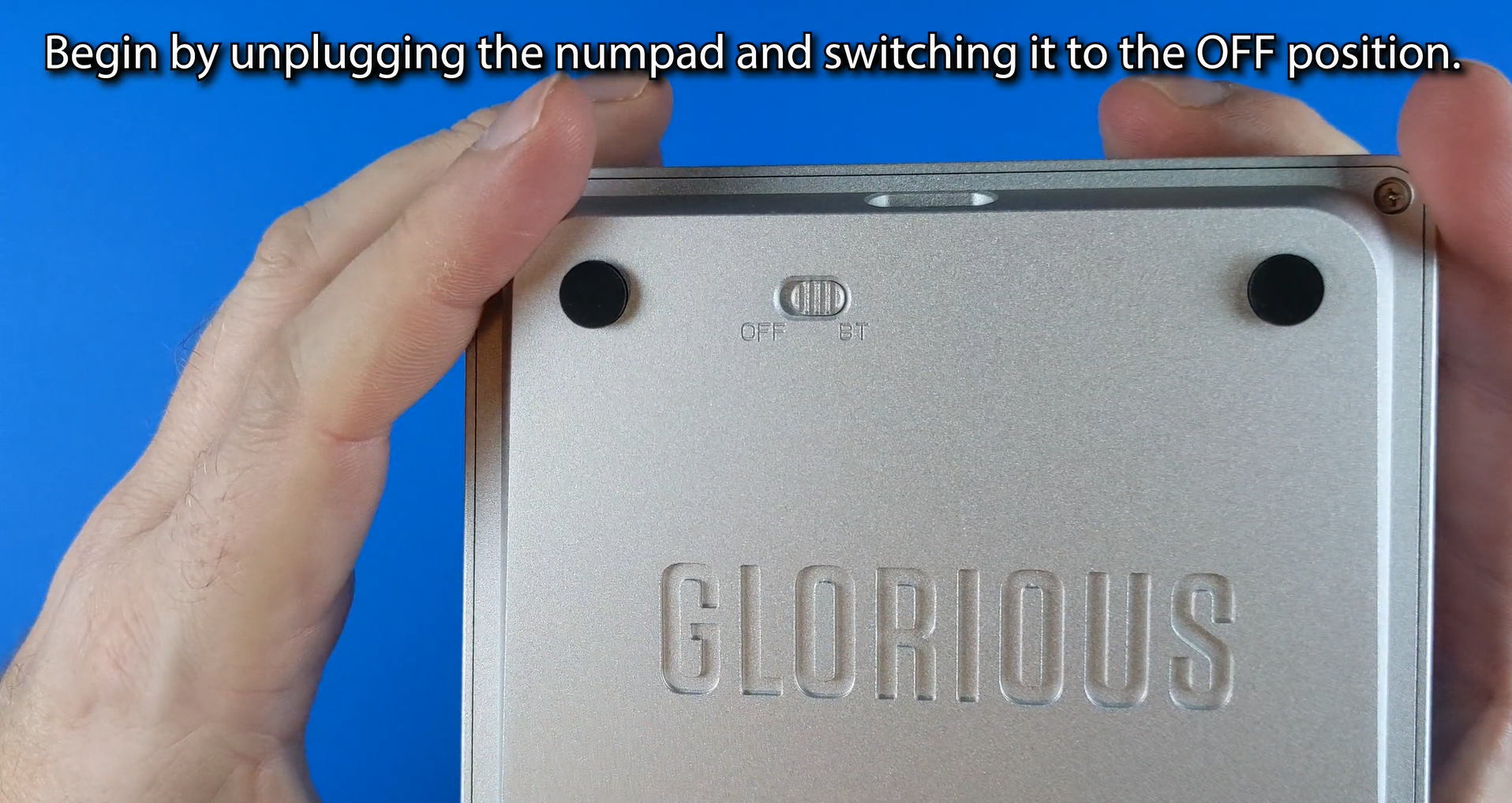

Step 1: Unplug the Numpad and Switch it to the OFF position.

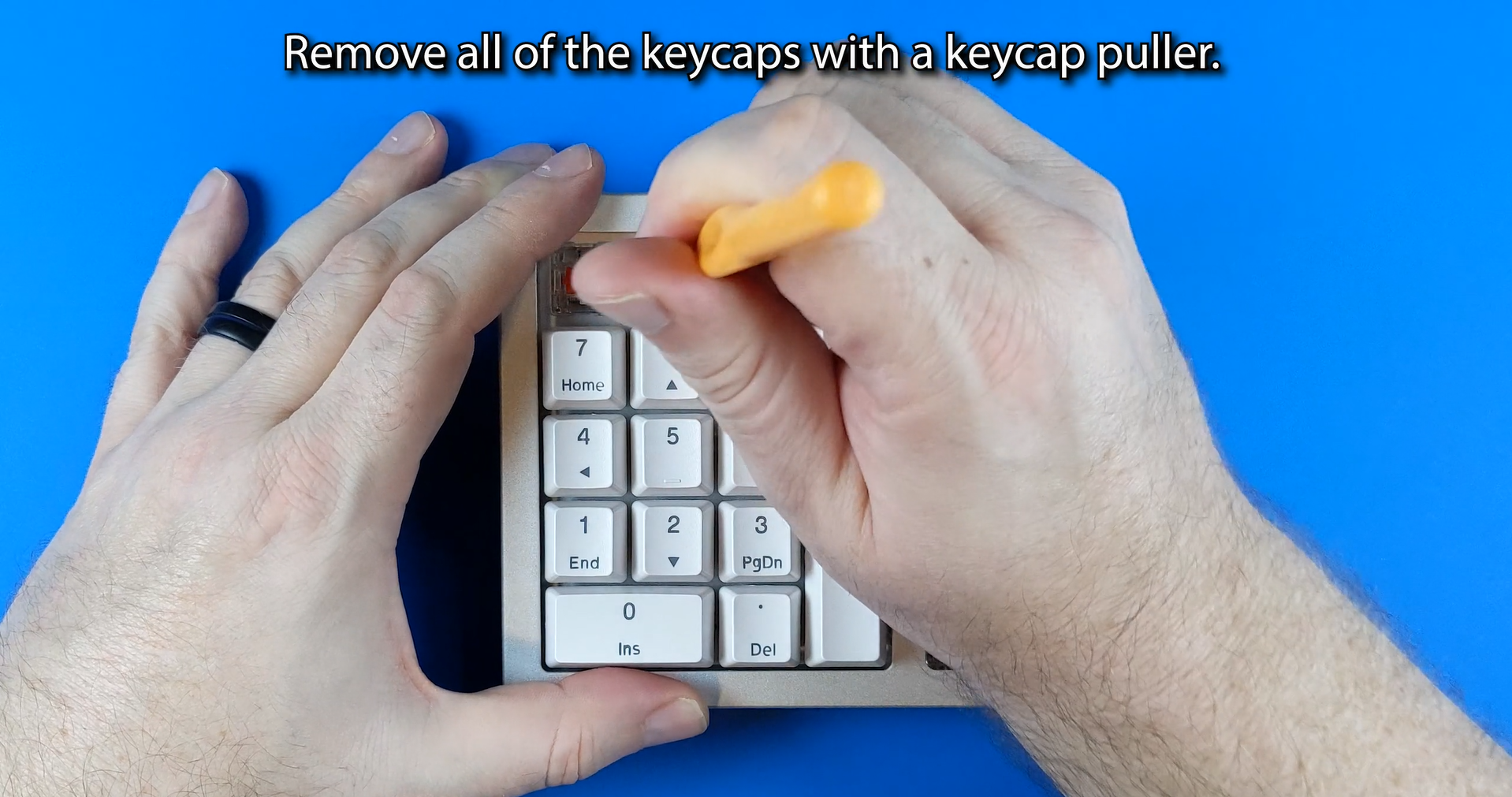

Step 2: Remove all Keycaps using a Keycap puller.

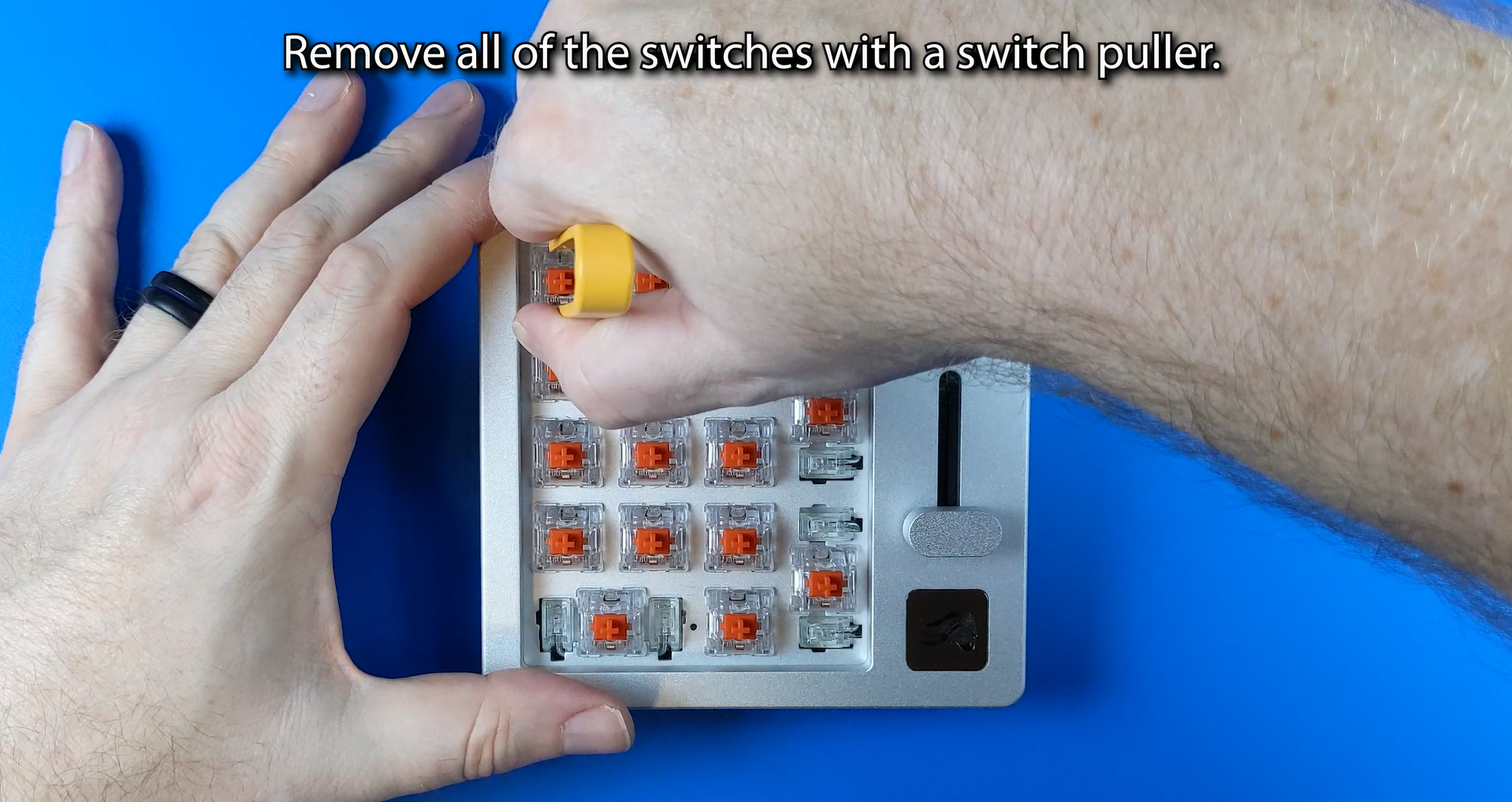

Step 3: Remove all Switches using a Switch puller.

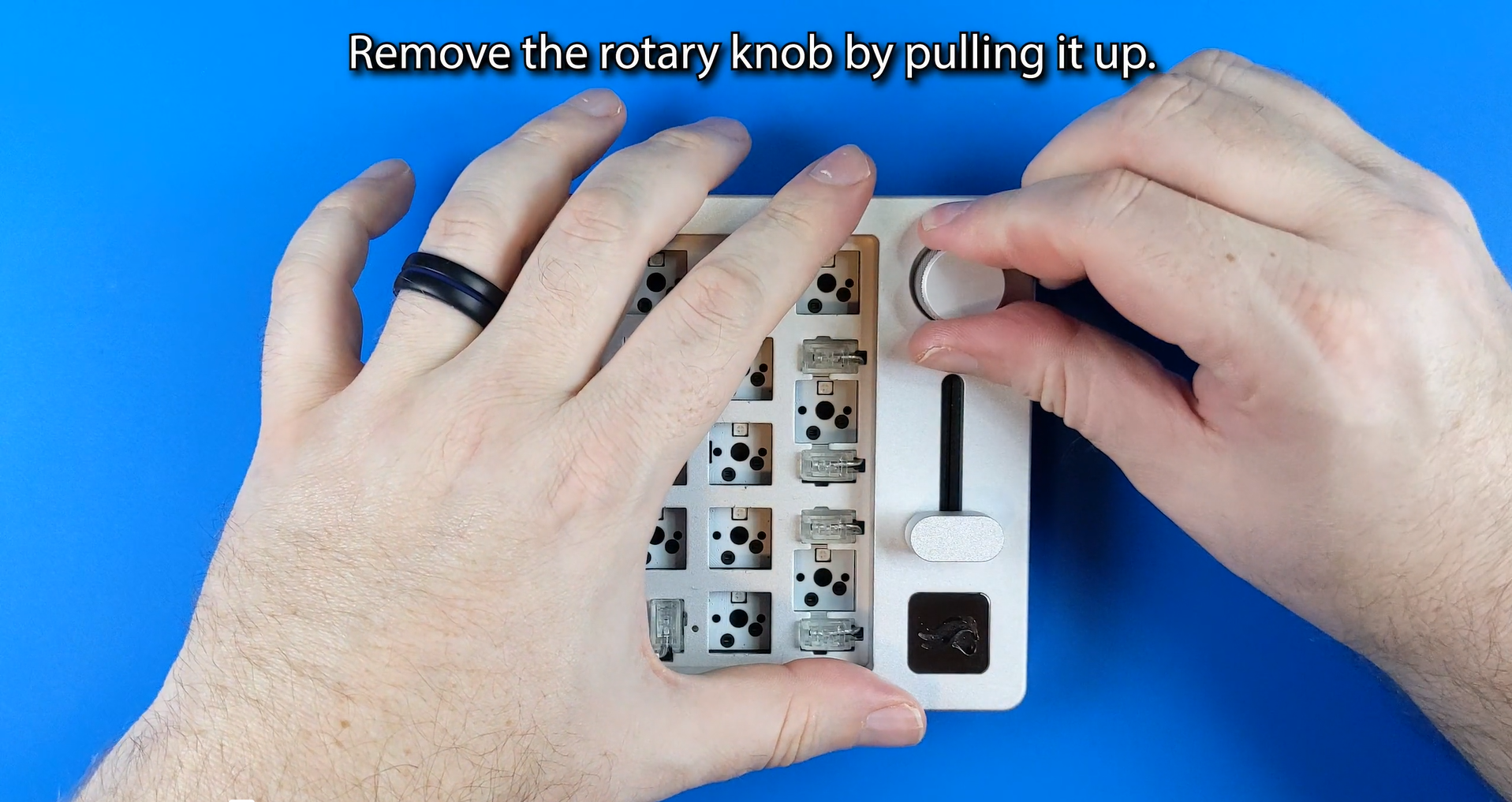

Step 4: Remove the Rotary Knob by pulling it upwards.






Step 5: Remove the Slider by pulling it upwards just like the Rotary Knob.

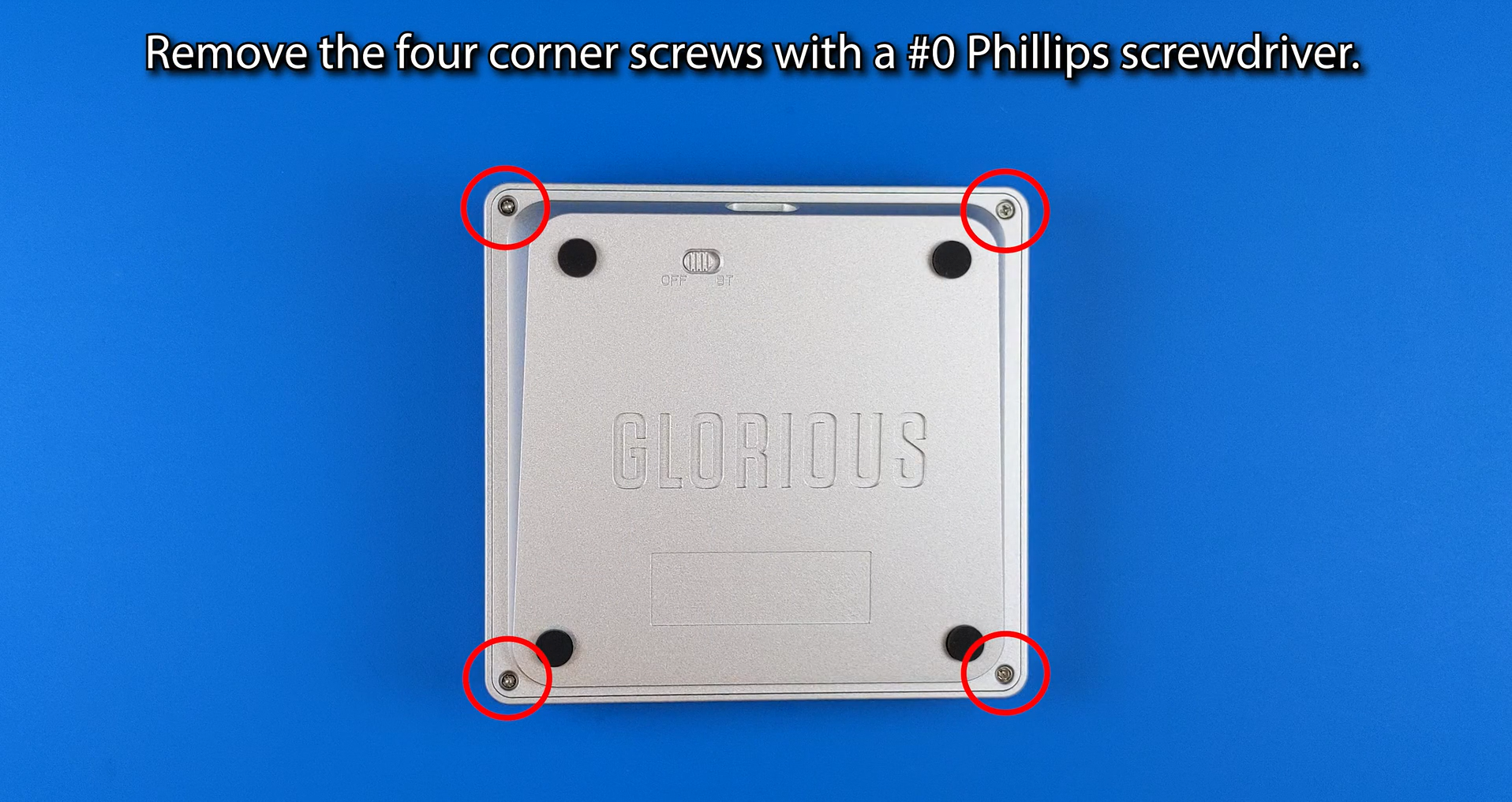

Step 6: Remove the four corner screws using a #0 Phillips screwdriver.

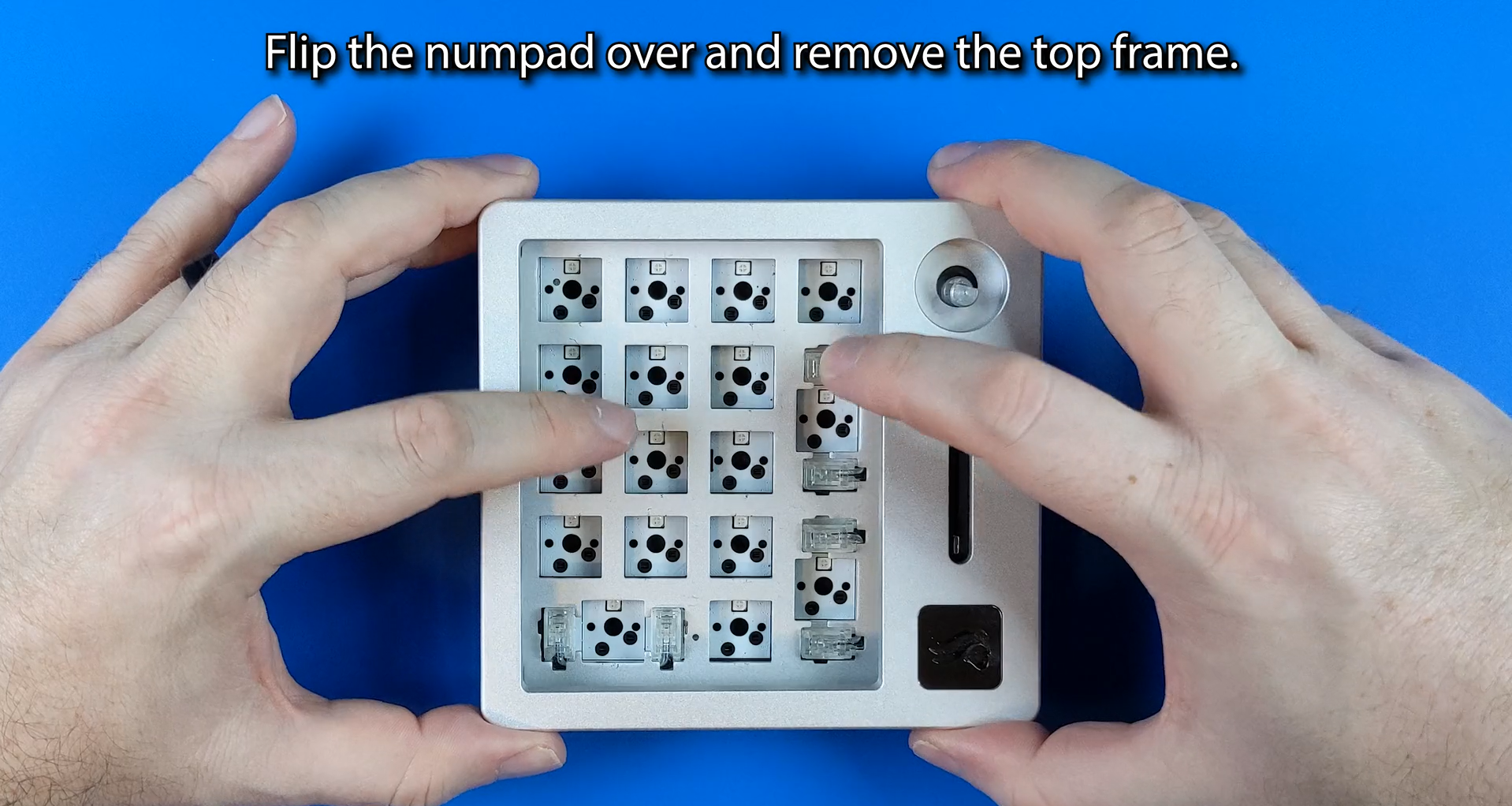

Step 7: Flip the Numpad over and remove the Top Frame.

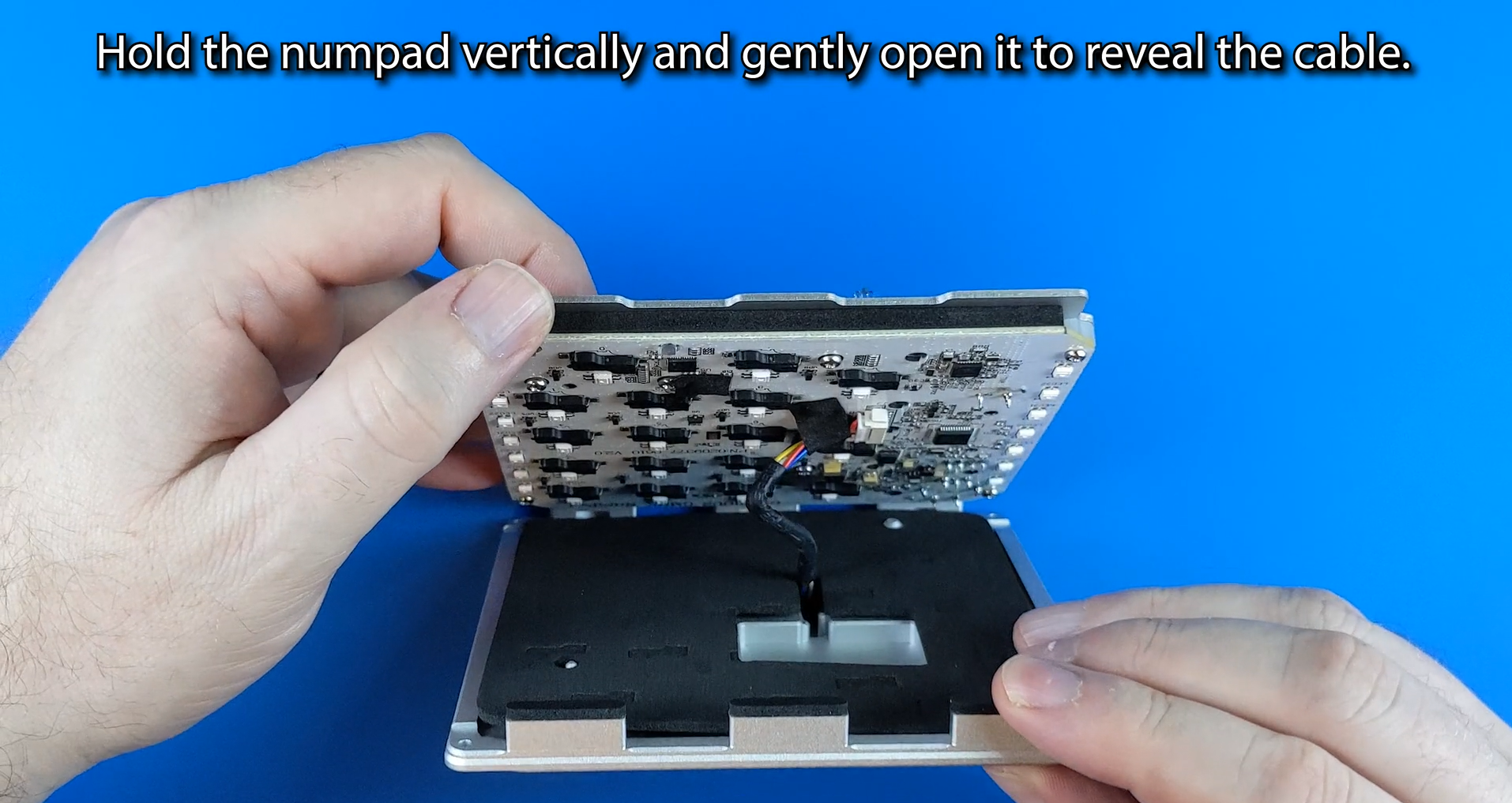

Step 8: Hold the Numpad vertically and gently open it to reveal the cable.

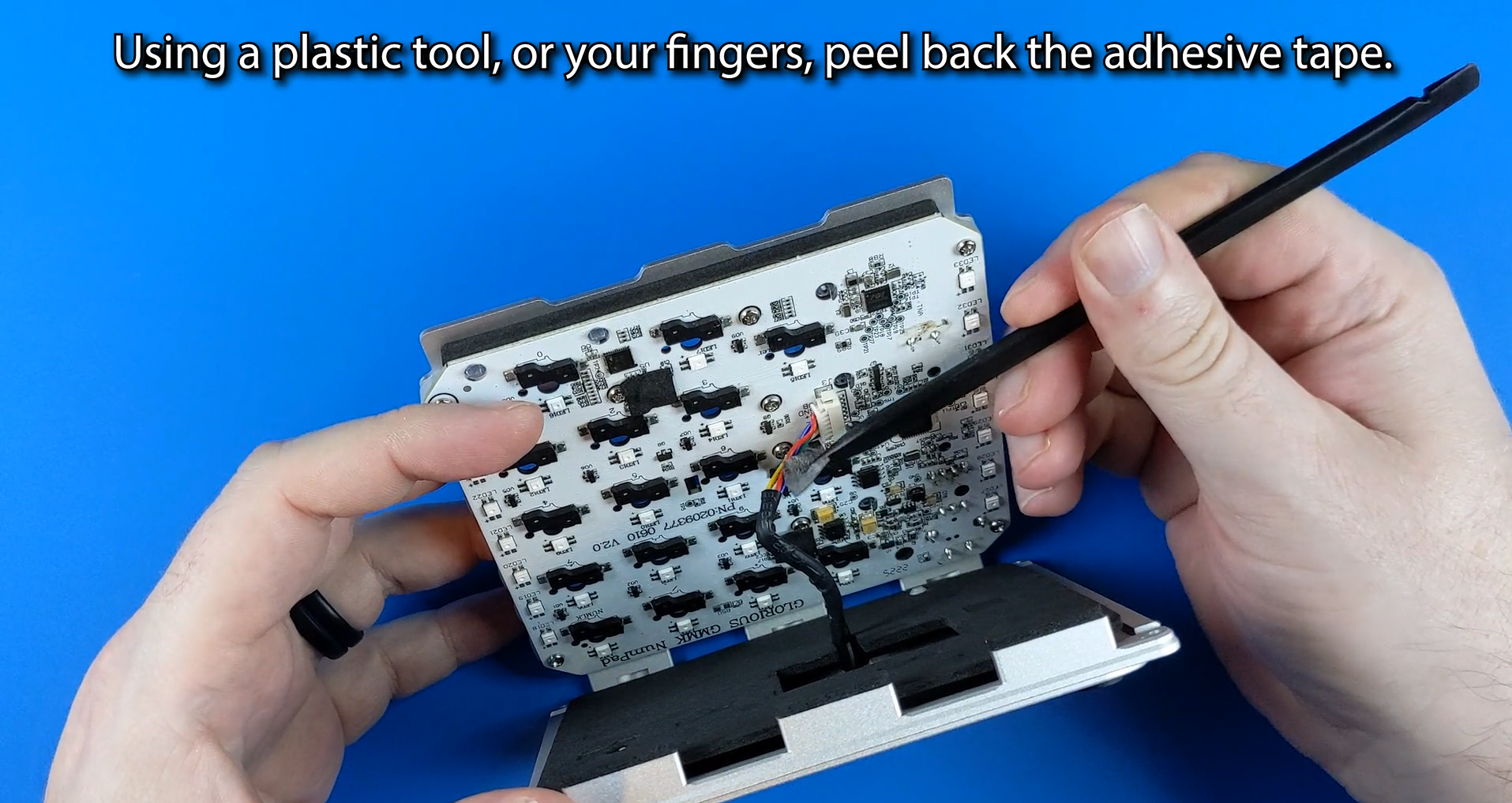

Step 9: Using a plastic tool or fingers, peel back the adhesive tape.

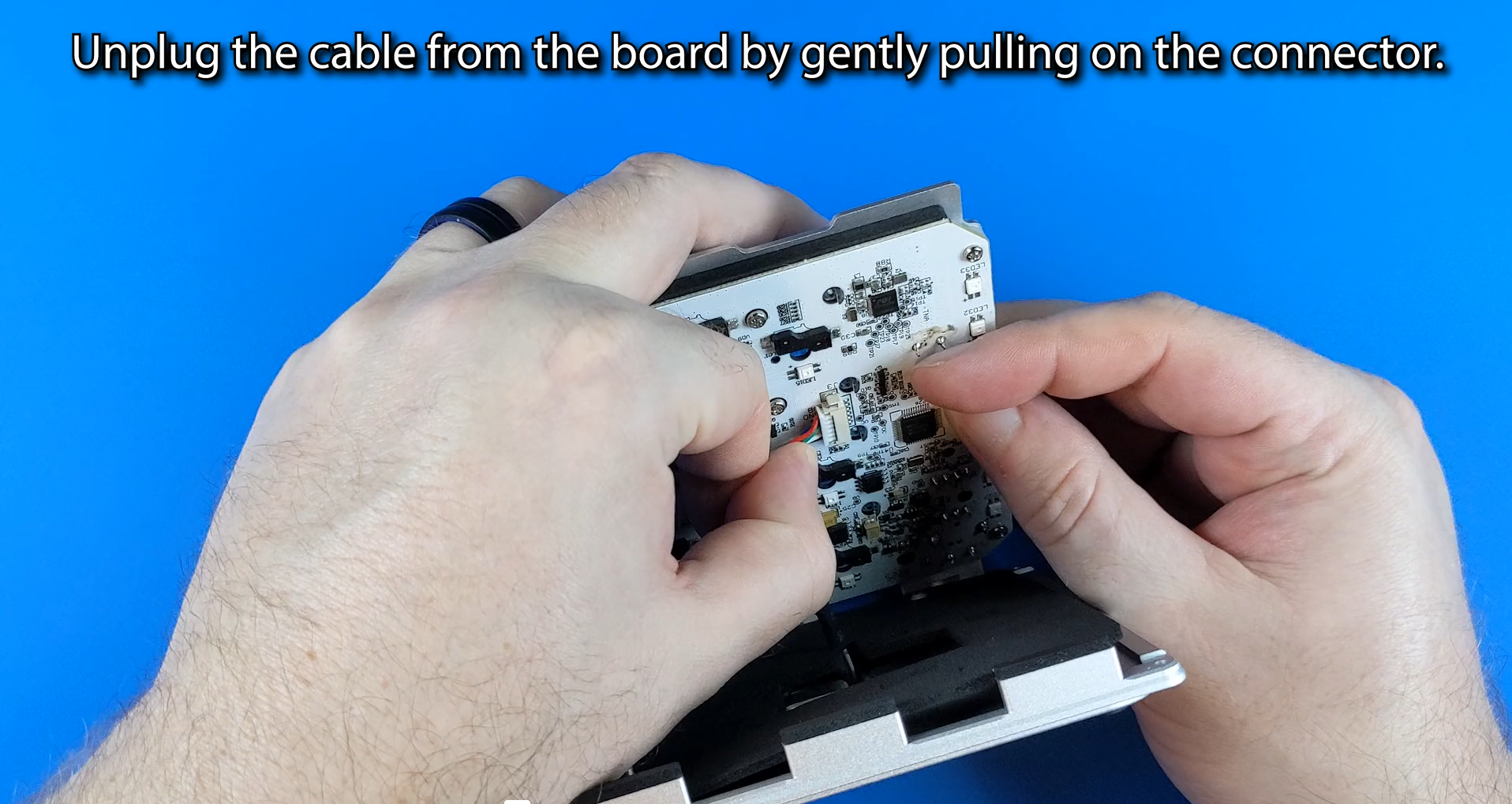

Step 10: Unplug the cable from the board by gently pulling on the connector.

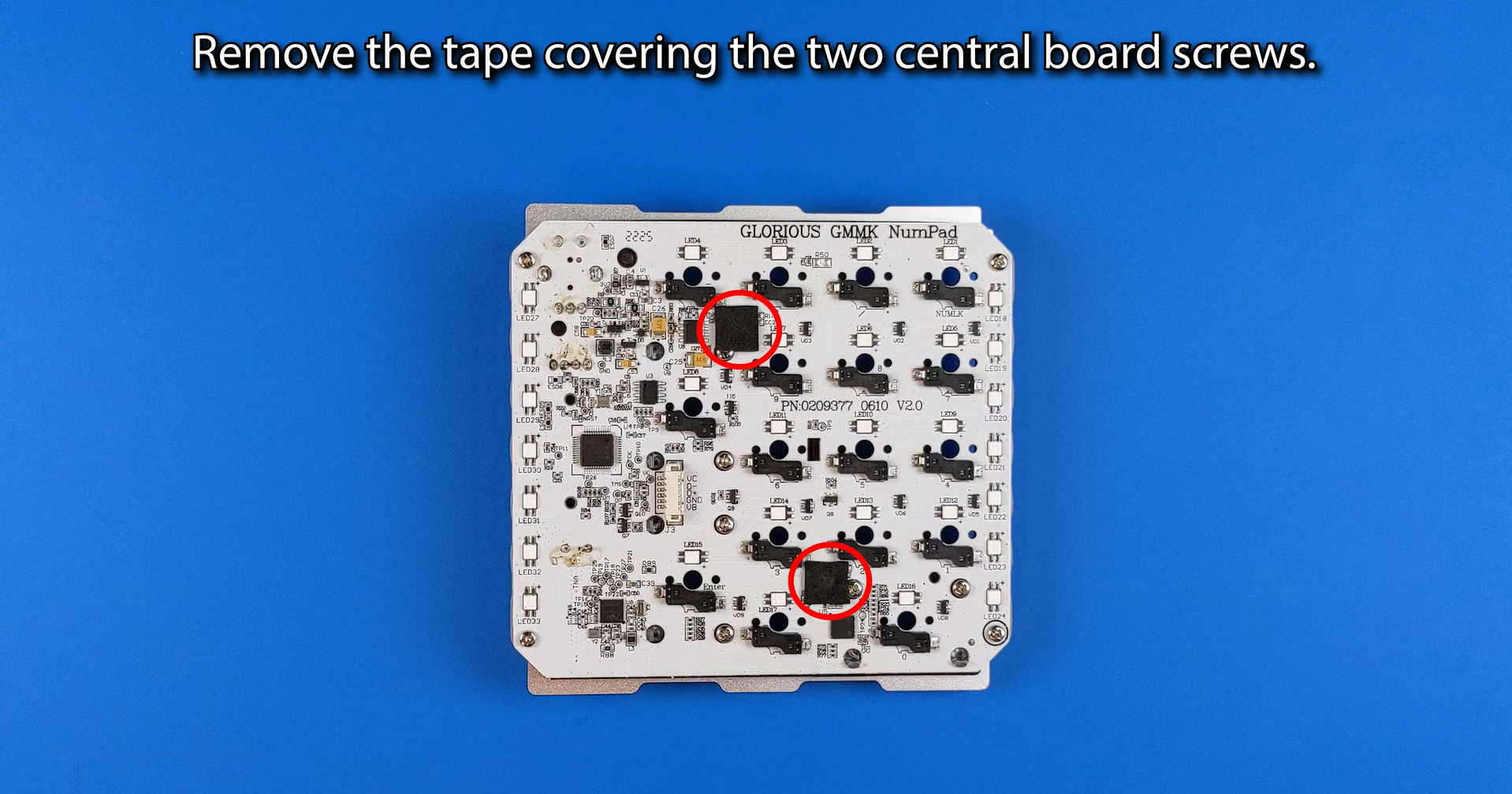

Step 11: Remove the tape covering the two central board screws.

(NOTE: These screws are unique and cannot be interchanged).

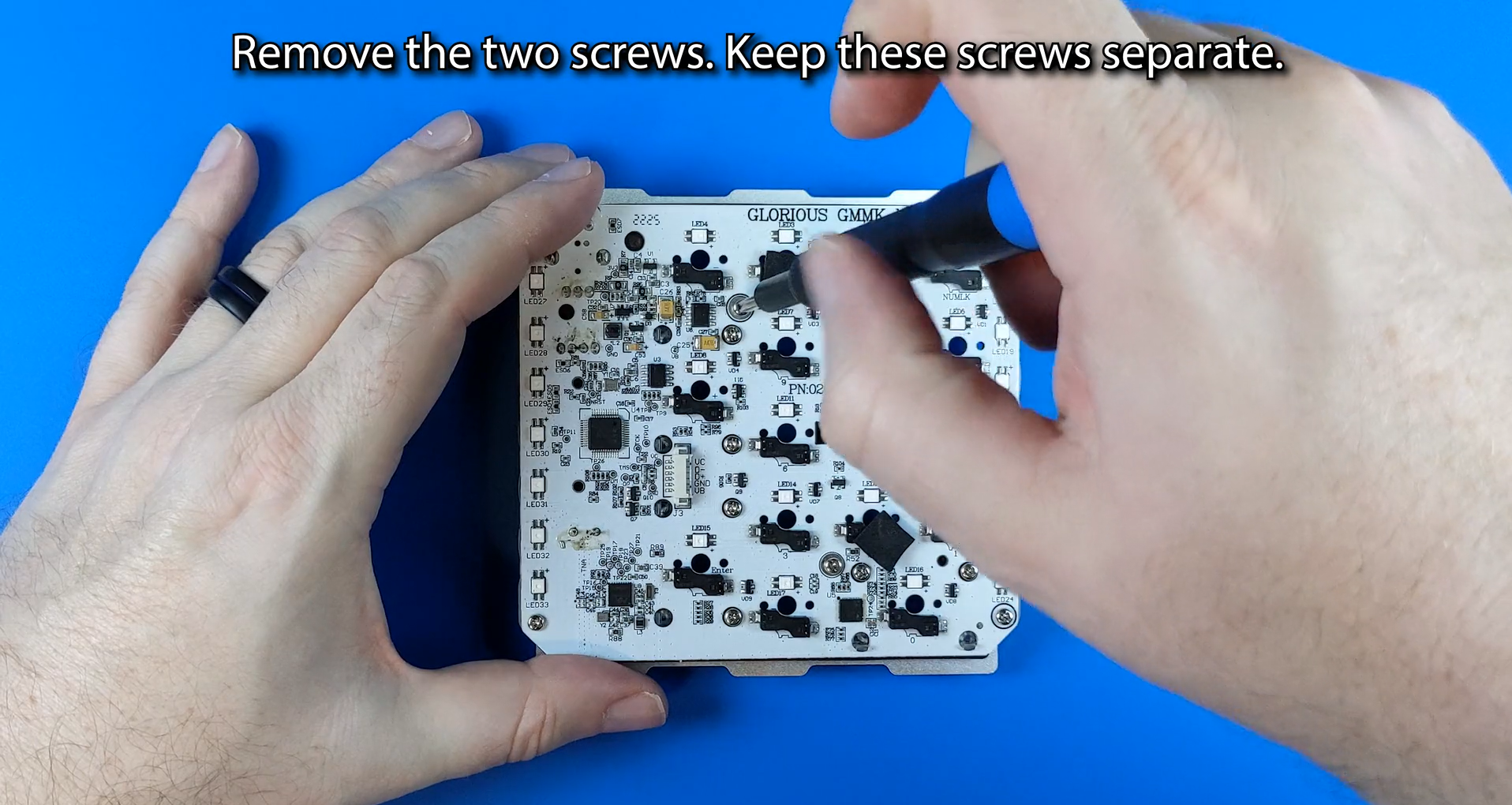

Step 12: Remove the two screws

(NOTE: These screws are unique and cannot be interchanged).

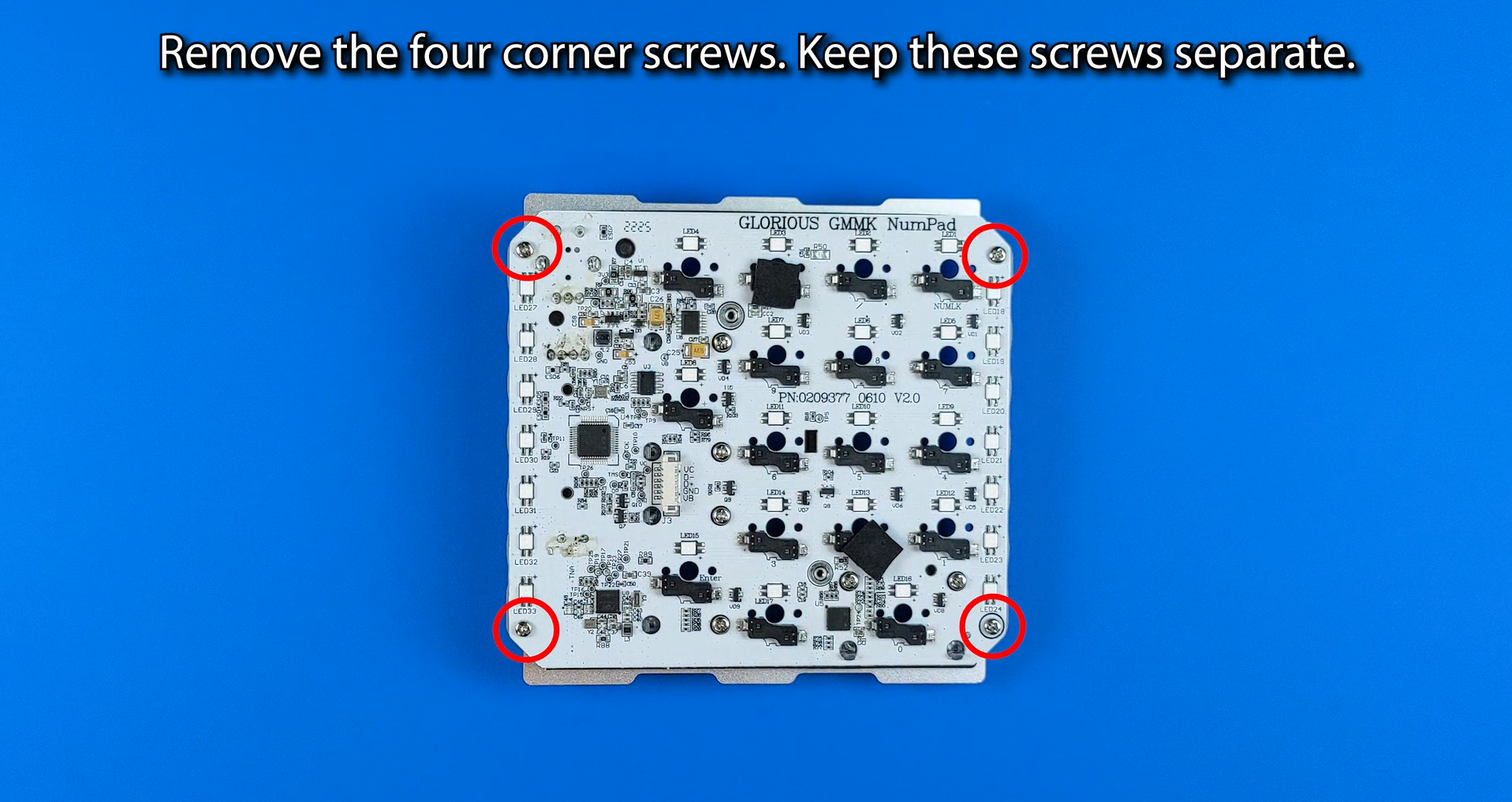

Step 13: Remove the four corner screws.

(NOTE: These screws are unique and cannot be interchanged).

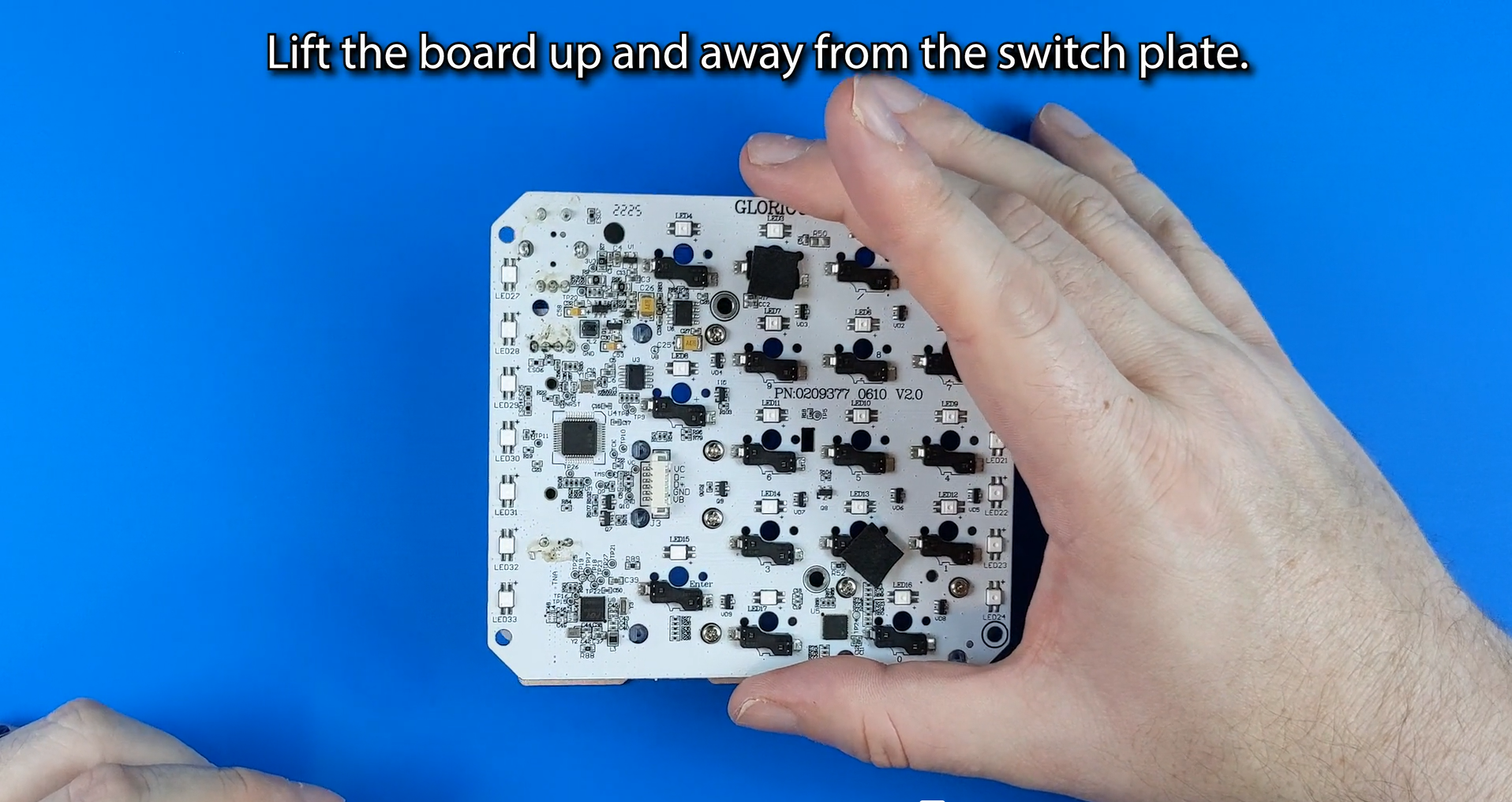

Step 14: Lift the board up and away from the switch plate.

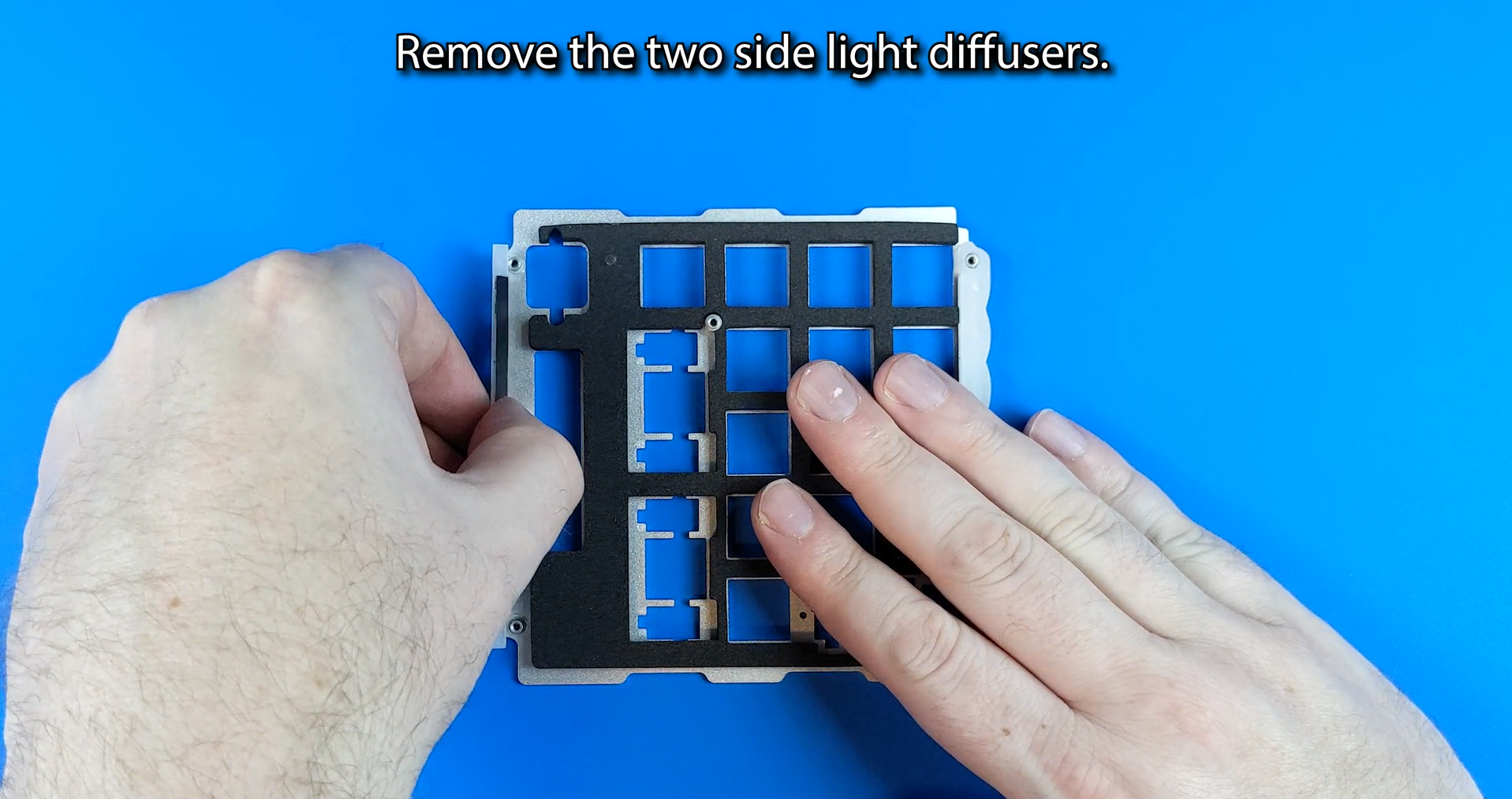

Step 15: Remove the two side light diffusers.

(NOTE: The scalloped edges of the diffusers face outward. When reinstalling, be sure the taped side of the diffuser touches the switch plate, with the scalloped edge facing outward).

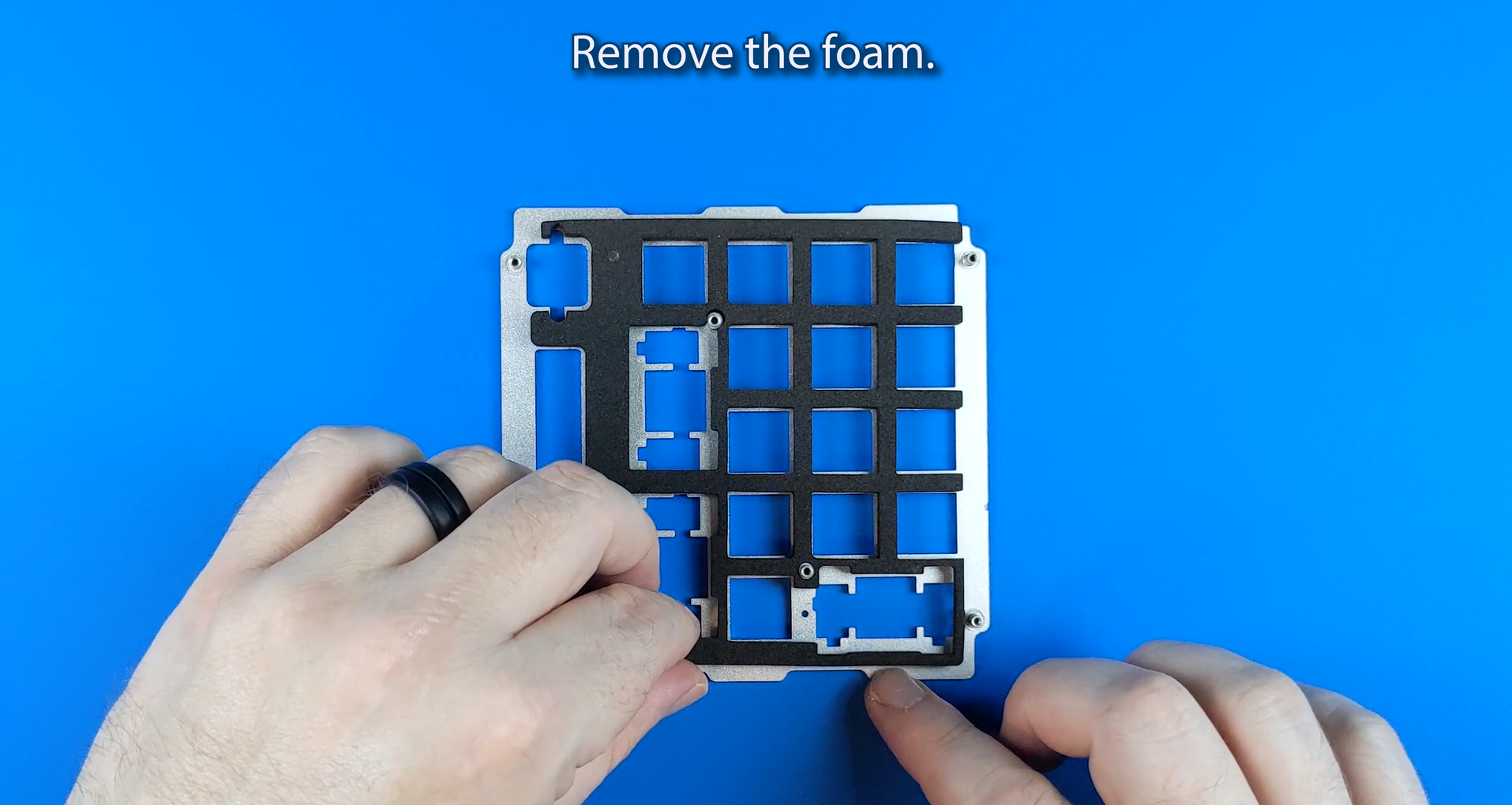

Step 18: Remove the foam




Step 17: To reassemble the Numpad, follow these steps in reverse order.
