GMMK Numpad - Removing the Badge

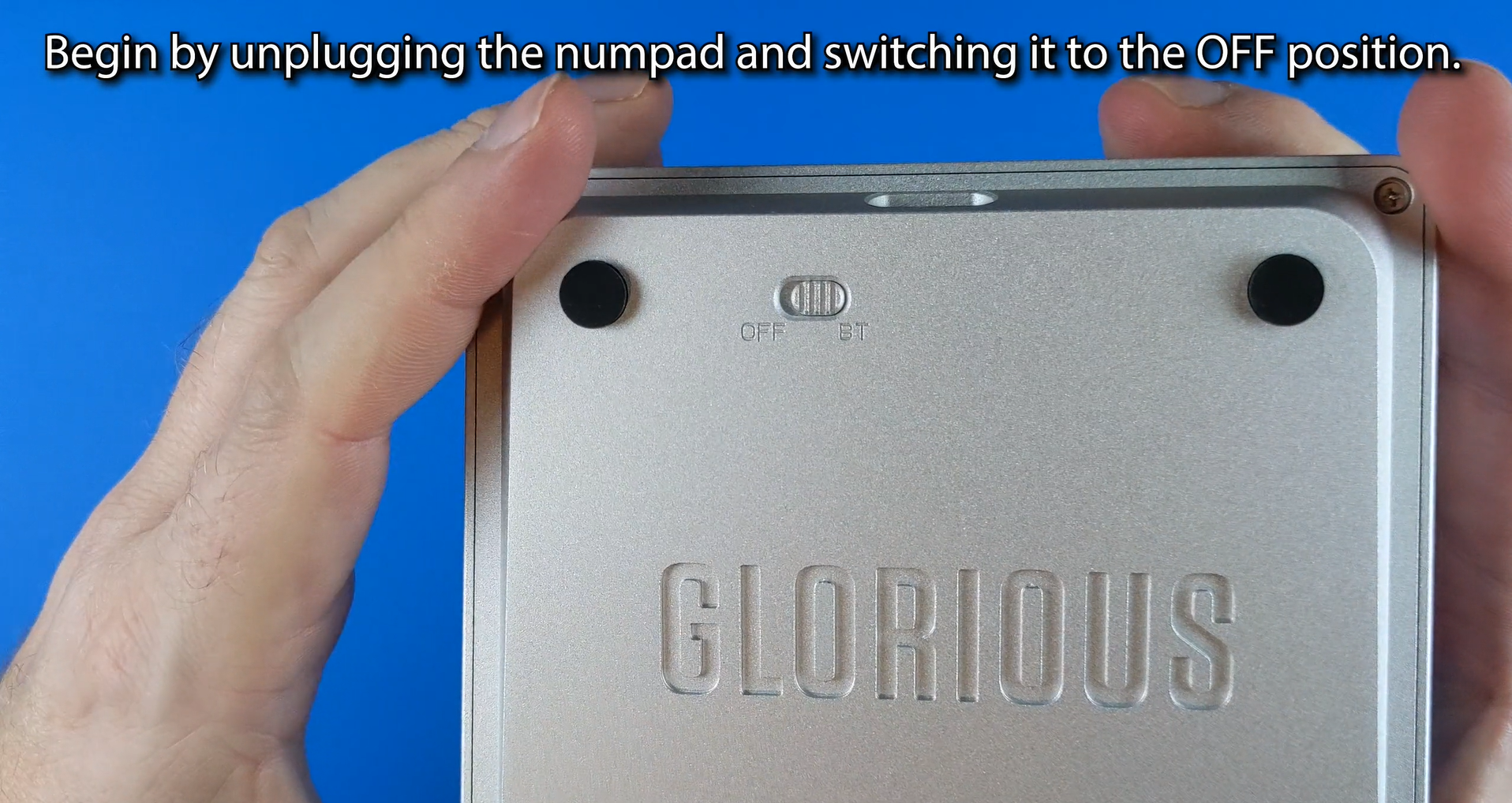

Step 1: Unplug the Numpad and Switch it to the OFF position.

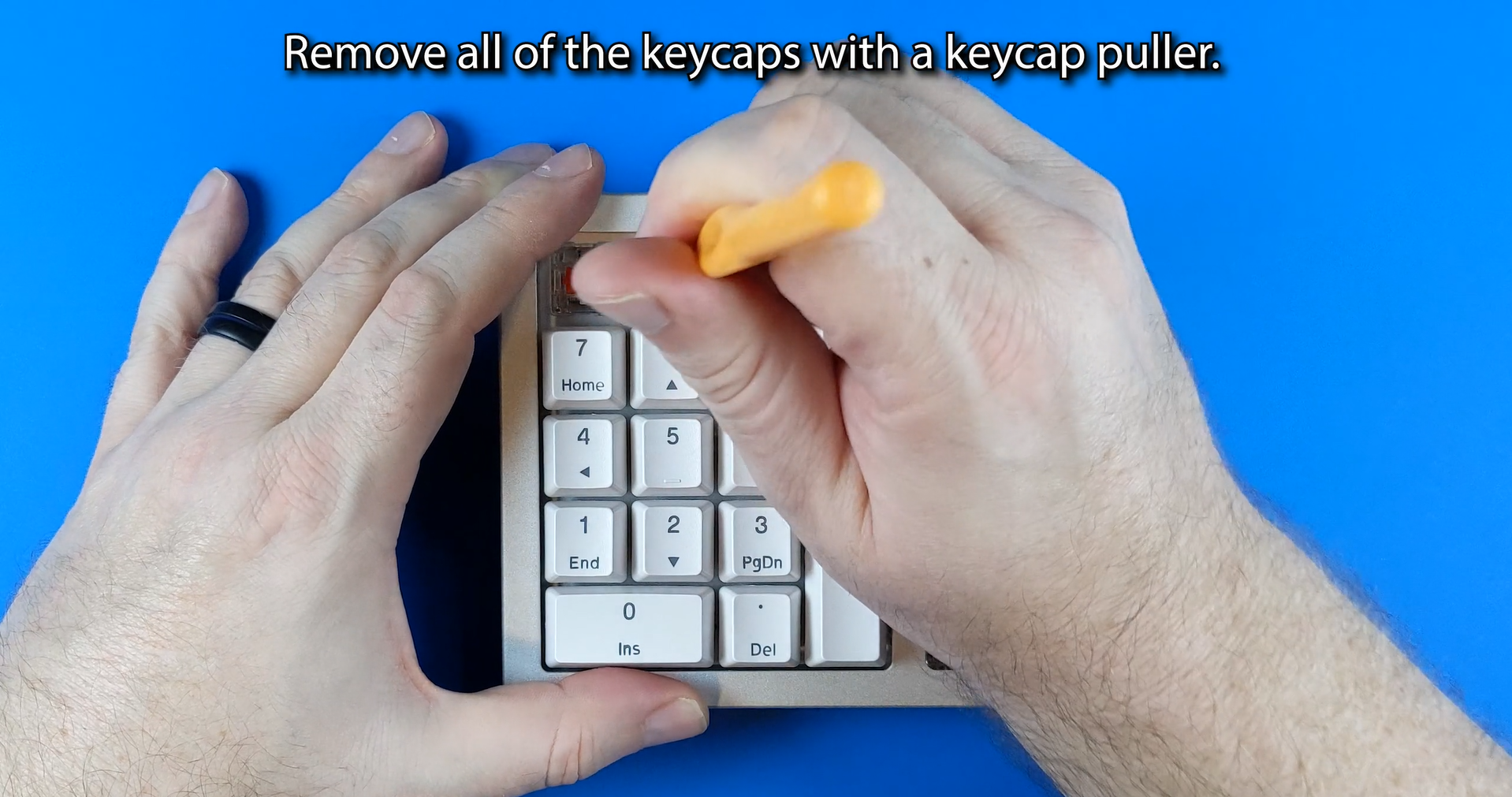

Step 2: Remove all Keycaps using a Keycap puller.

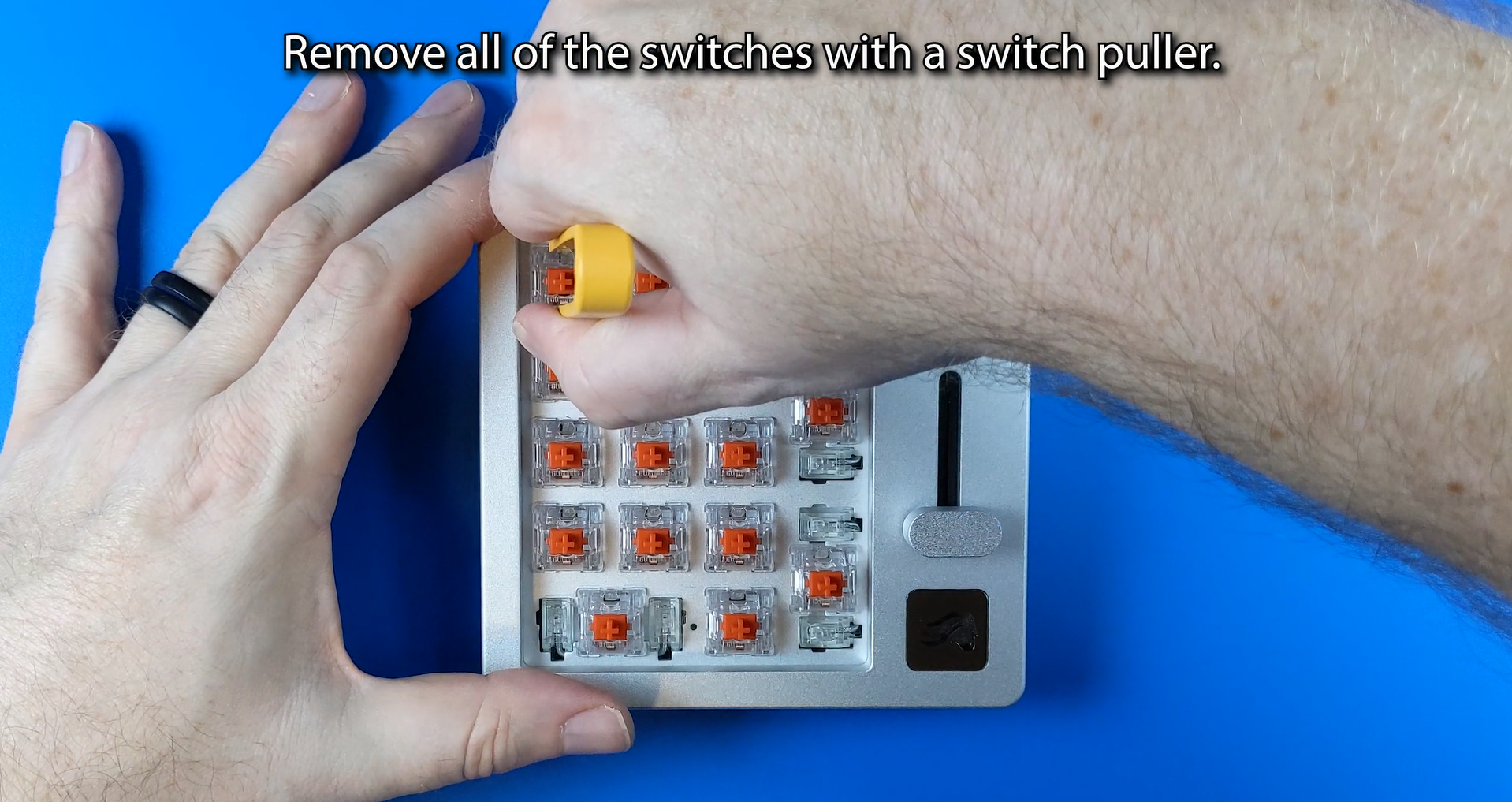

Step 3: Remove all Switches using a Switch puller.

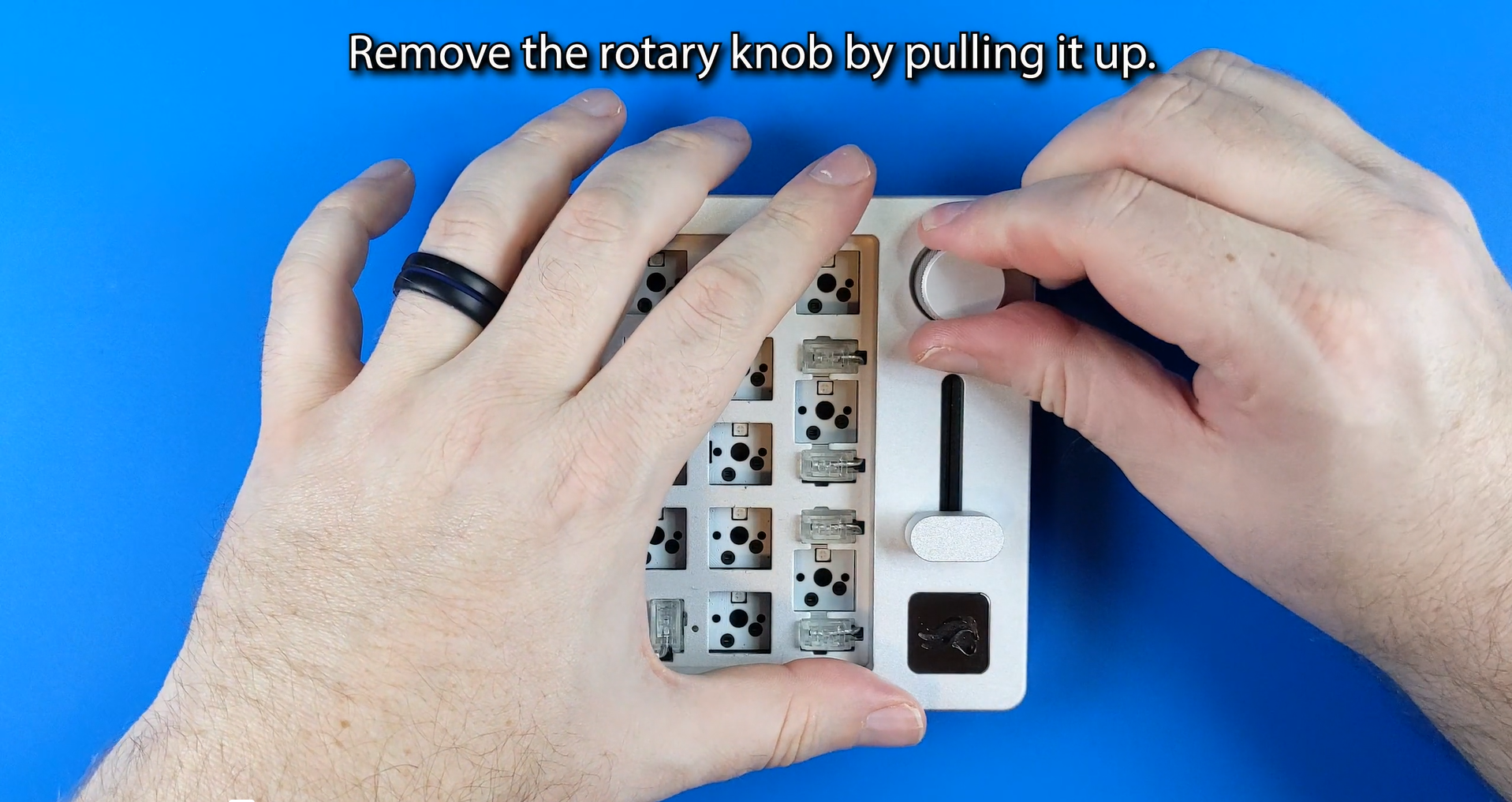

Step 4: Remove the Rotary Knob by pulling it upwards.

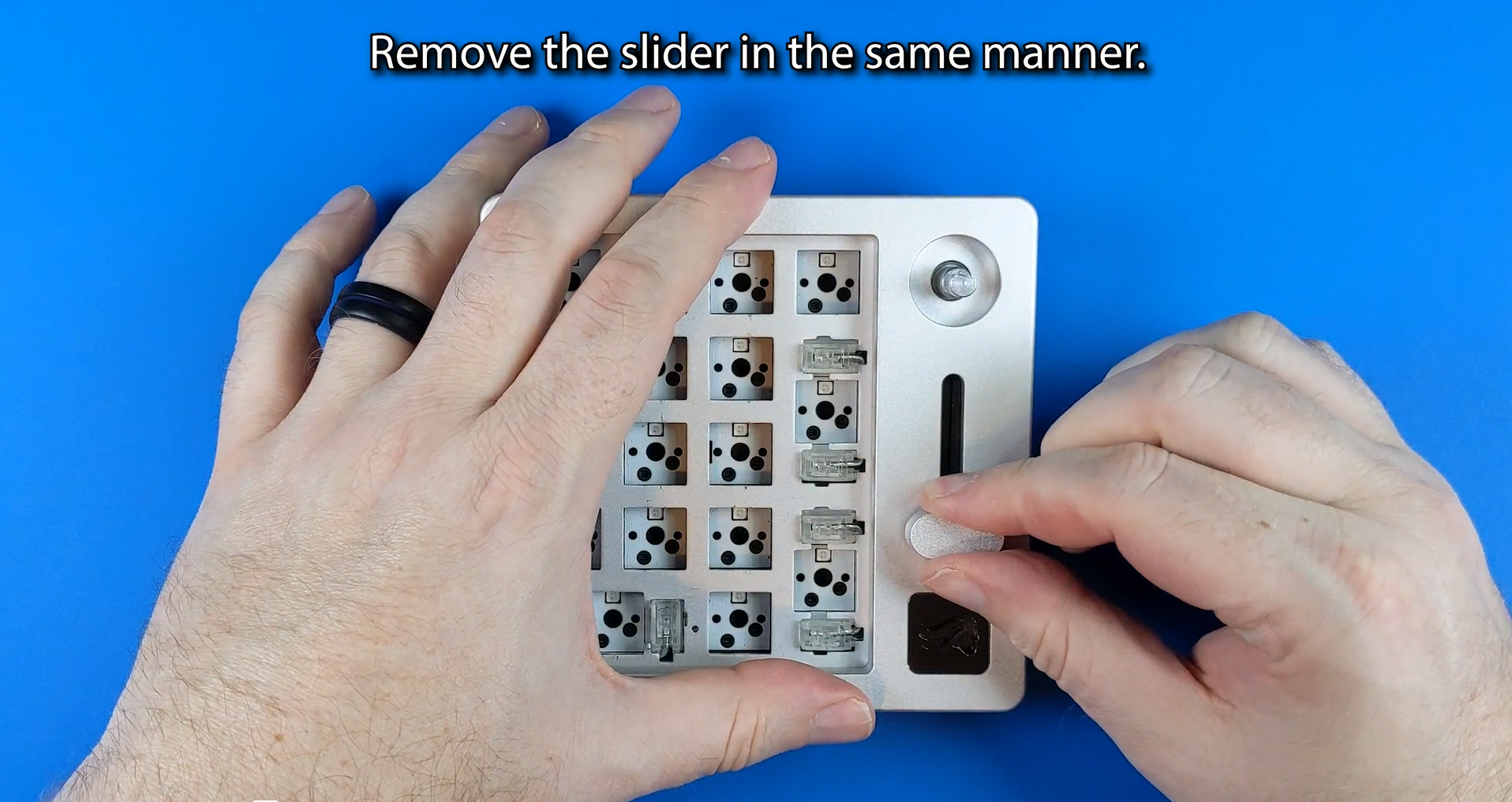

Step 5: Remove the Slider by pulling it upwards just like the Rotary Knob.

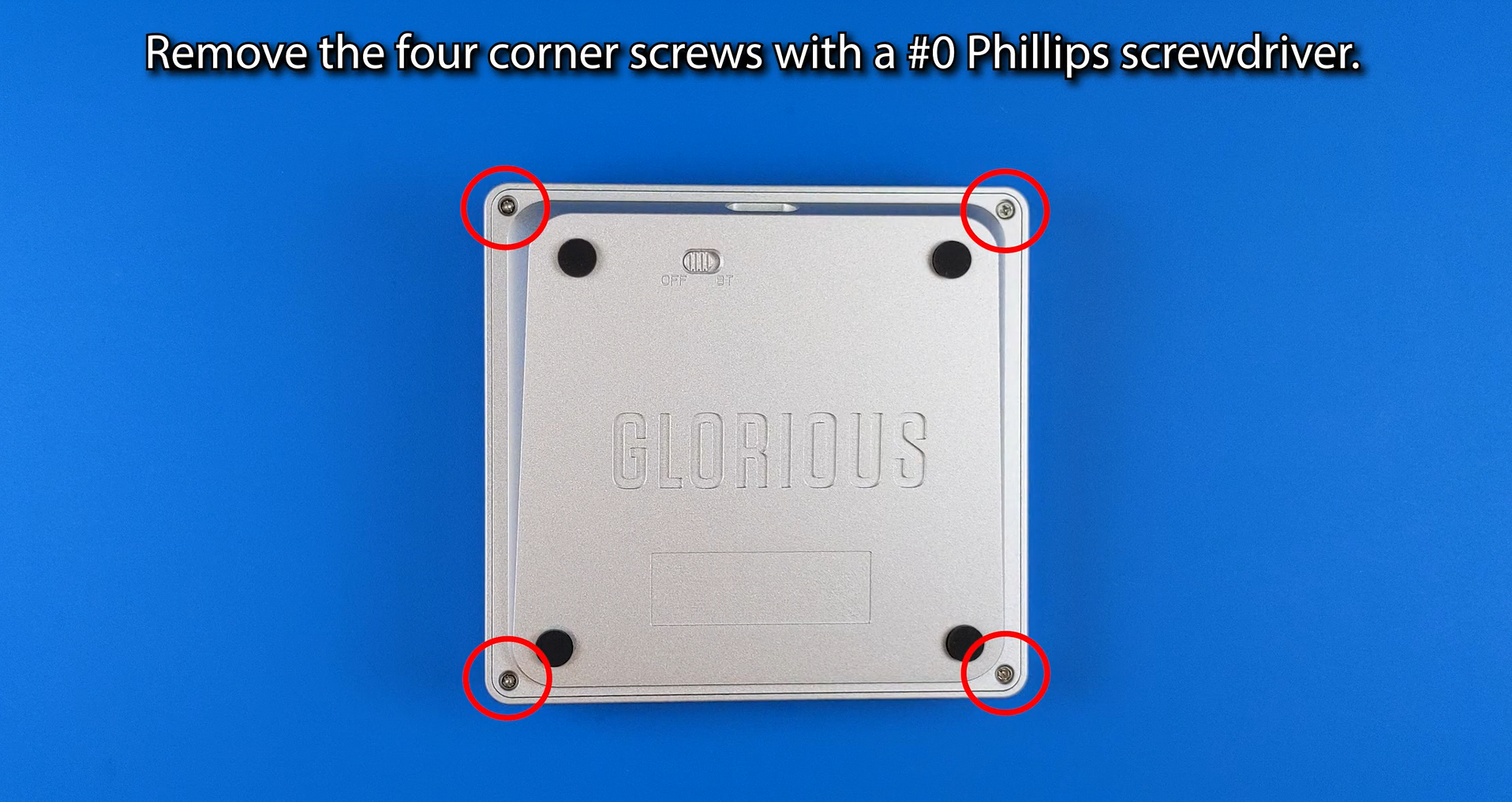

Step 6: Remove the four corner screws using a #0 Phillips screwdriver.

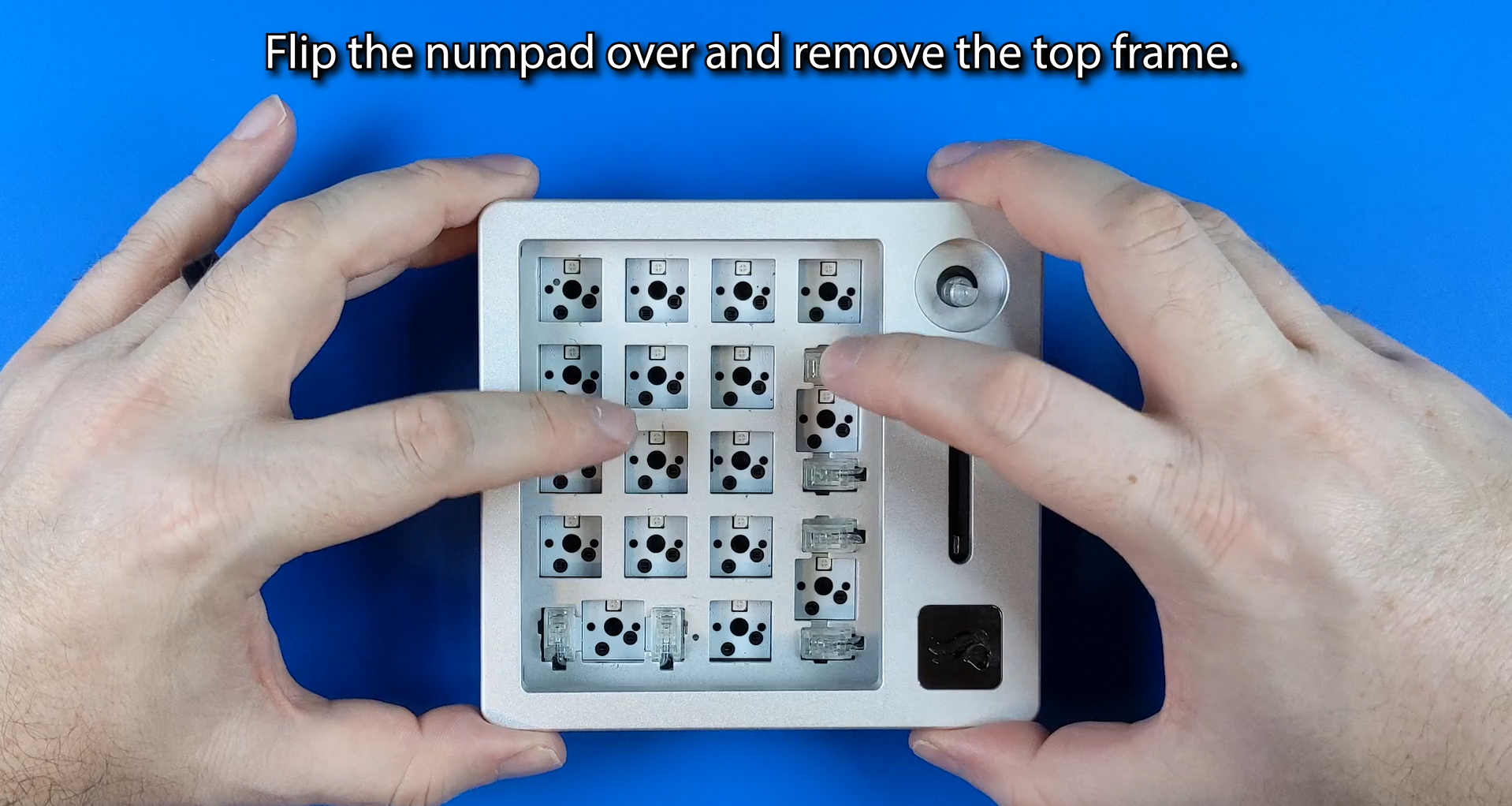

Step 7: Flip the Numpad over and remove the Top Frame.

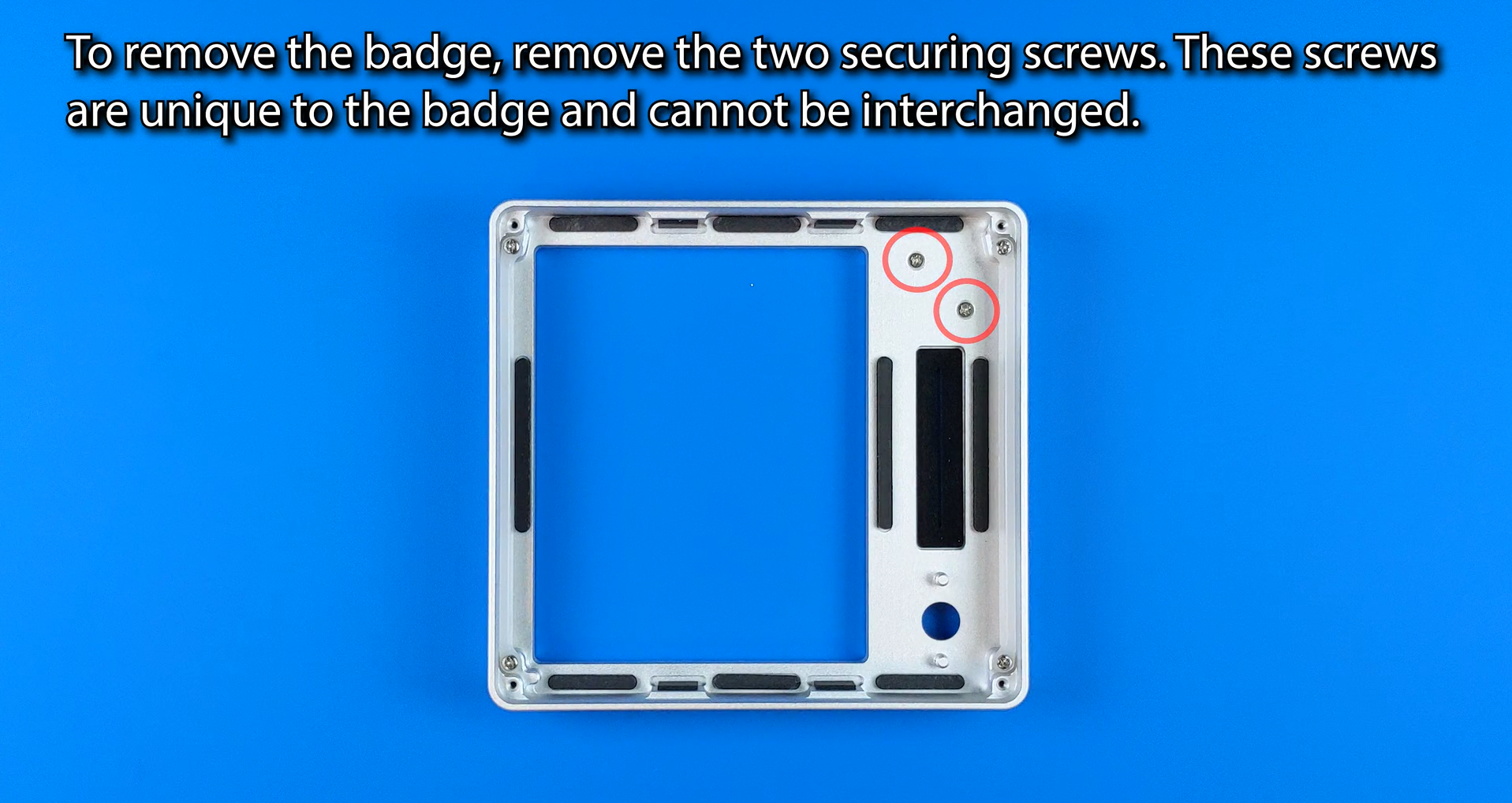

Step 8: To remove the badge, remove the two securing screws.

(NOTE: These screws are unique and cannot be interchanged).

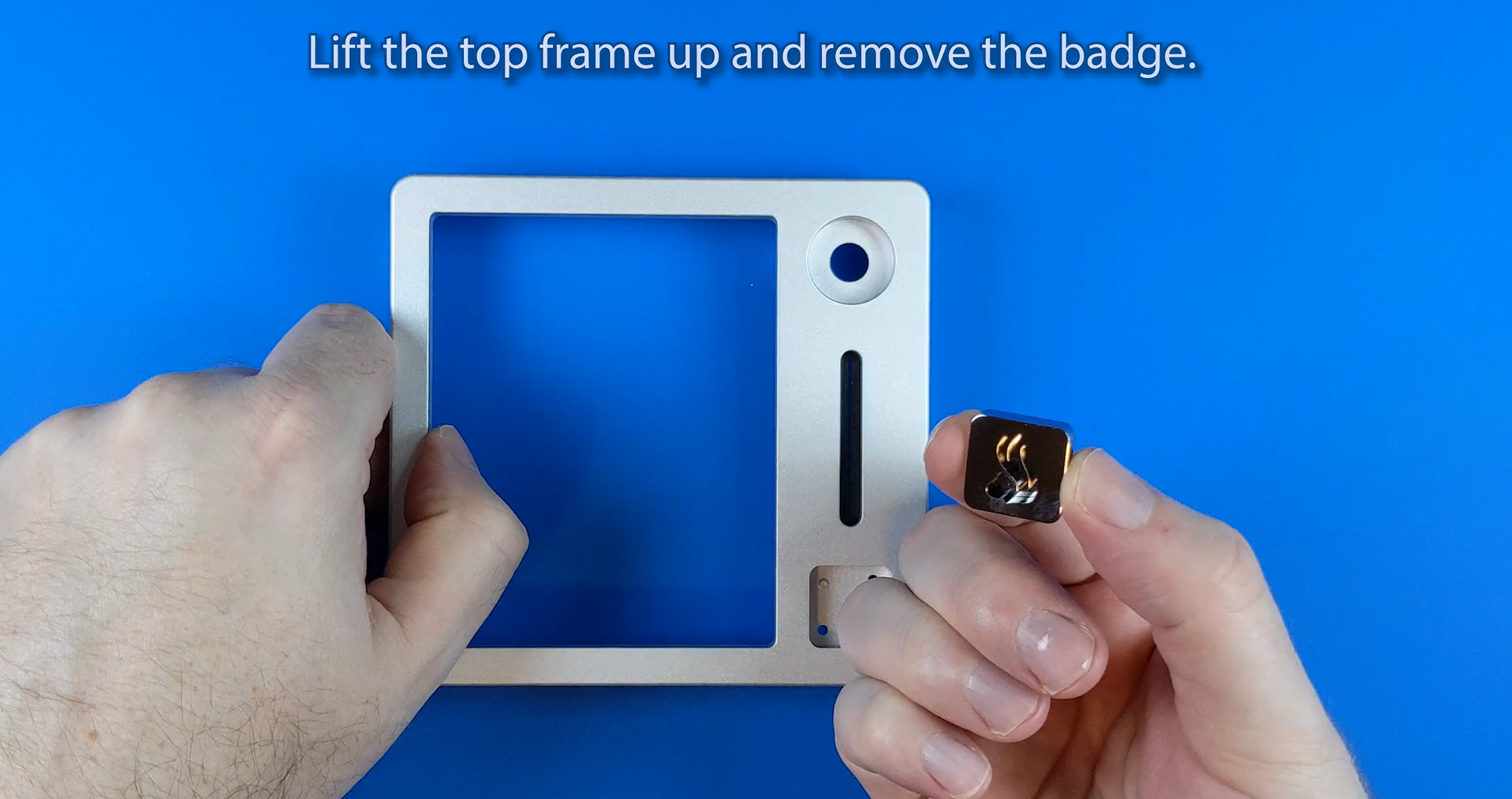

Step 9: Lift the top frame up and remove the badge.
