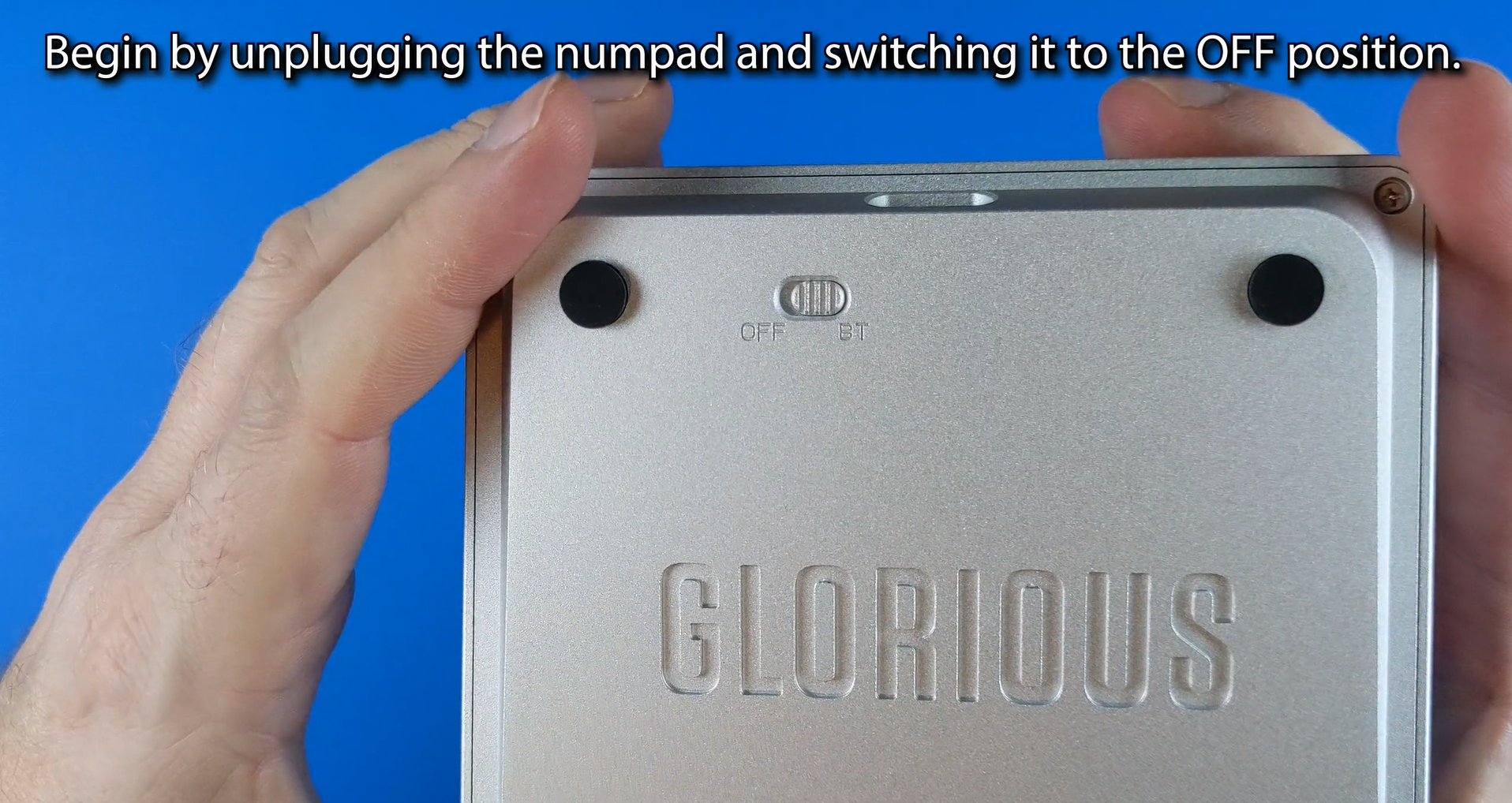

Step 1: Unplug the Numpad and Switch it to the OFF position.

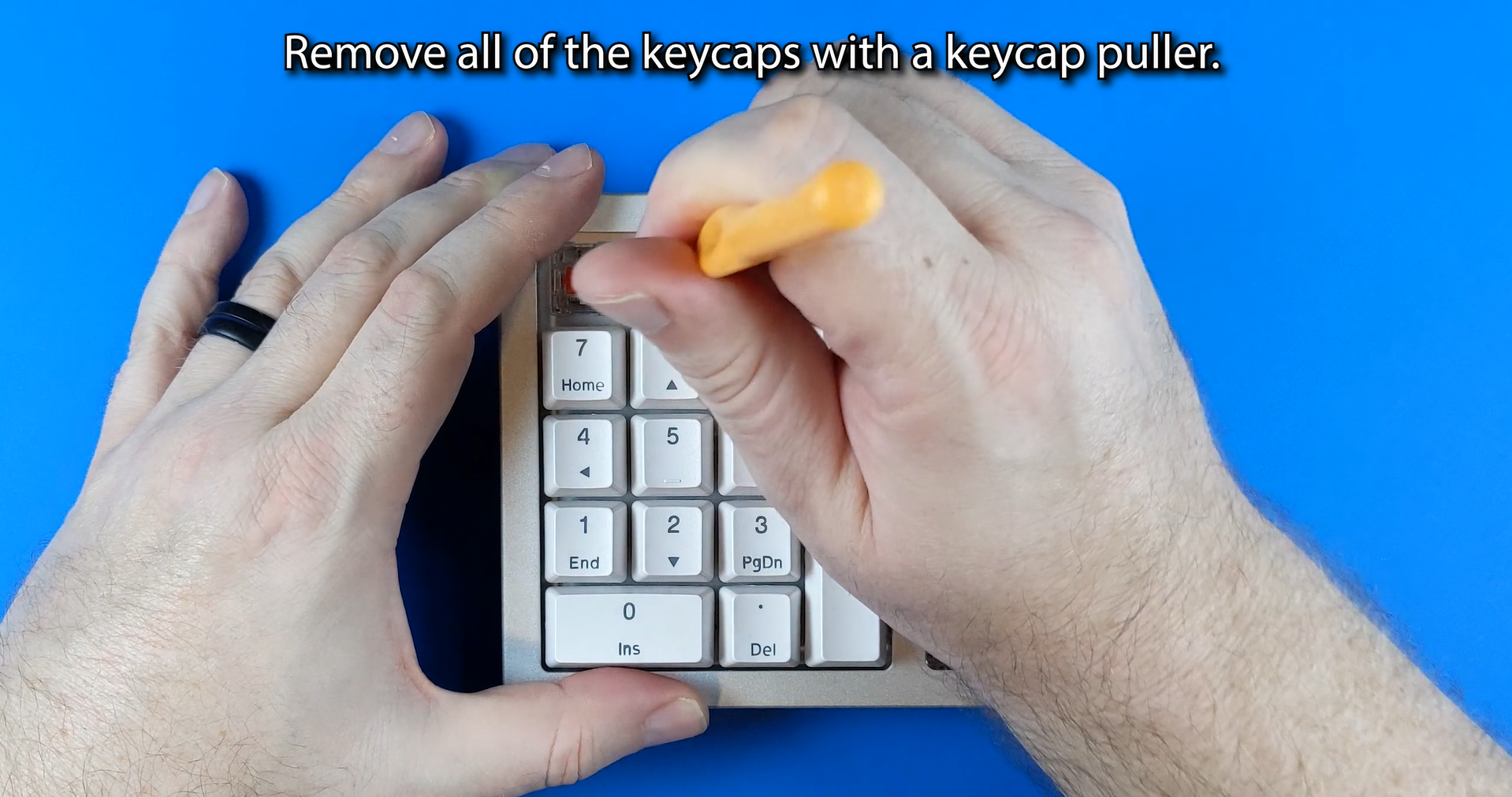

Step 2: Remove all Keycaps using a Keycap puller.

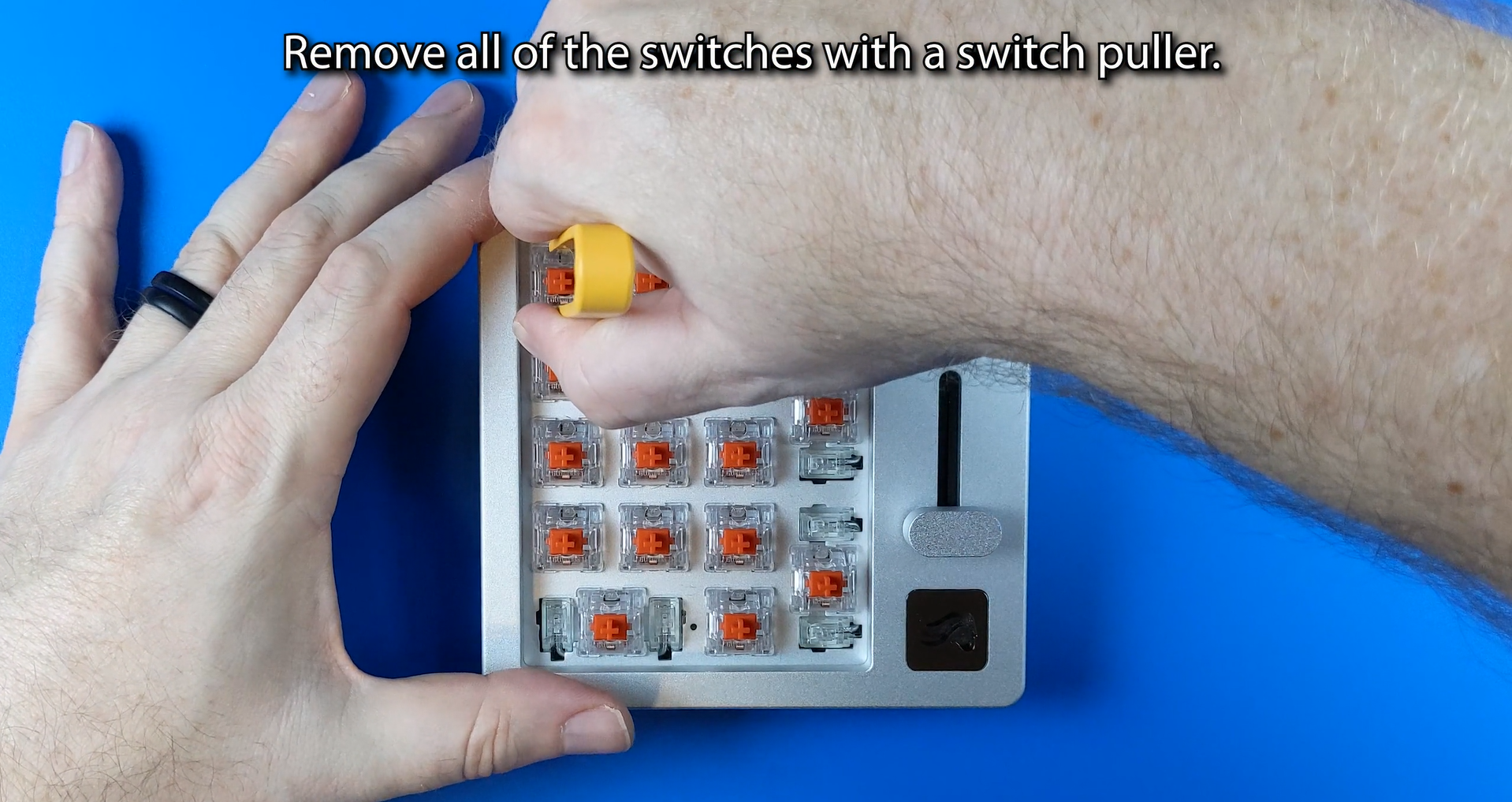

Step 3: Remove all Switches using a Switch puller.

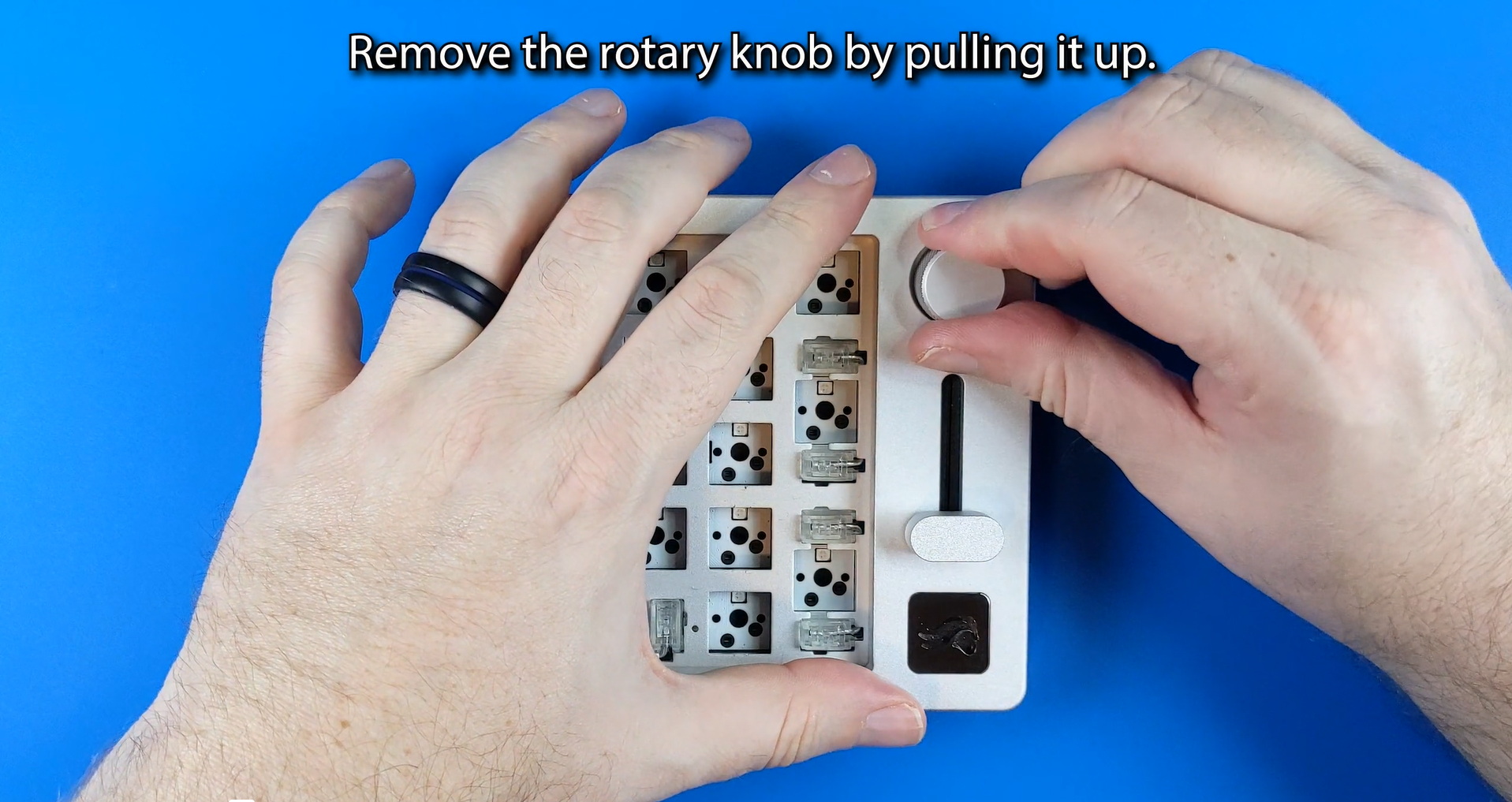

Step 4: Remove the Rotary Knob by pulling it upwards.

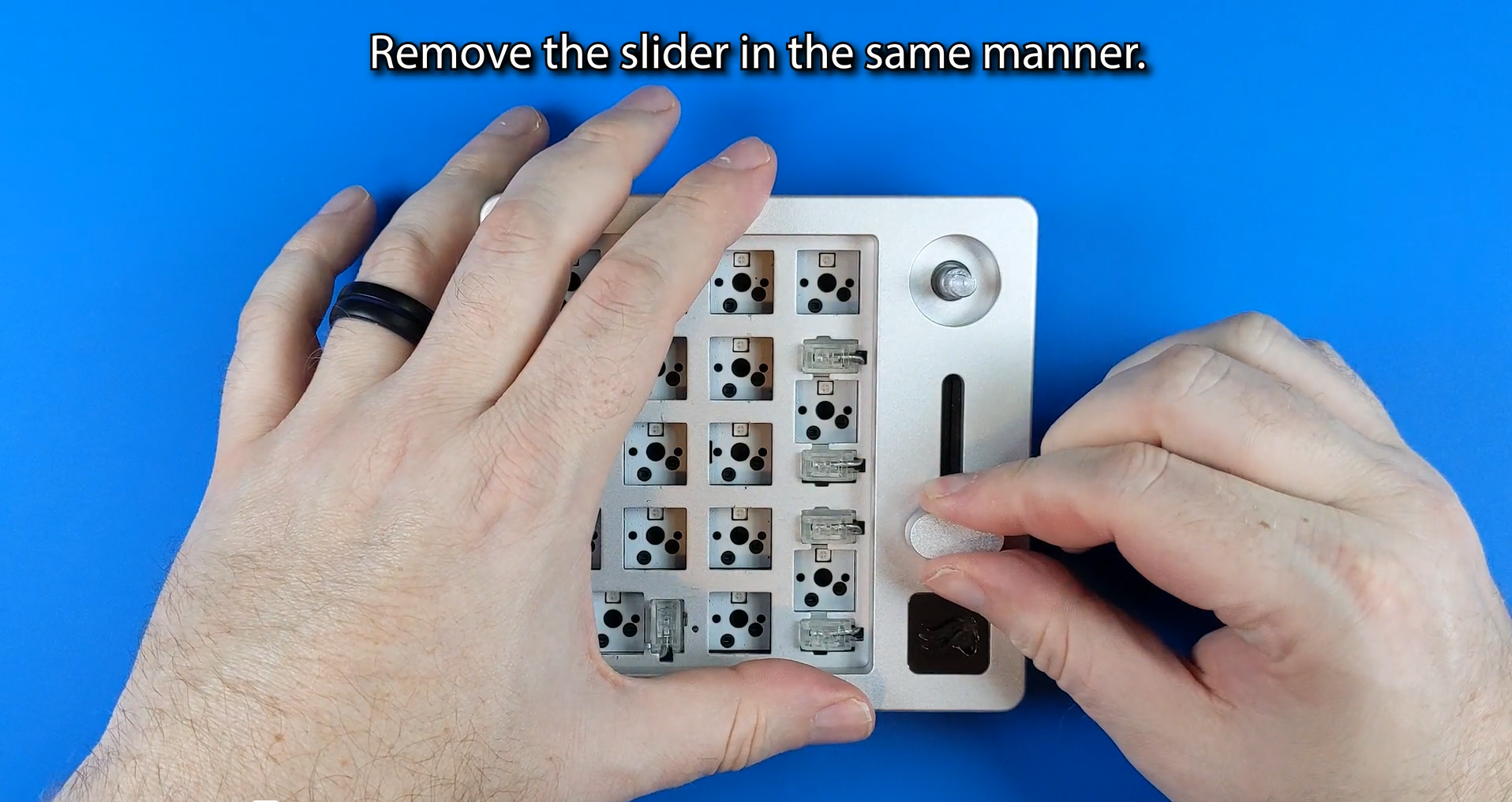

Step 5: Remove the Slider by pulling it upwards just like the Rotary Knob.

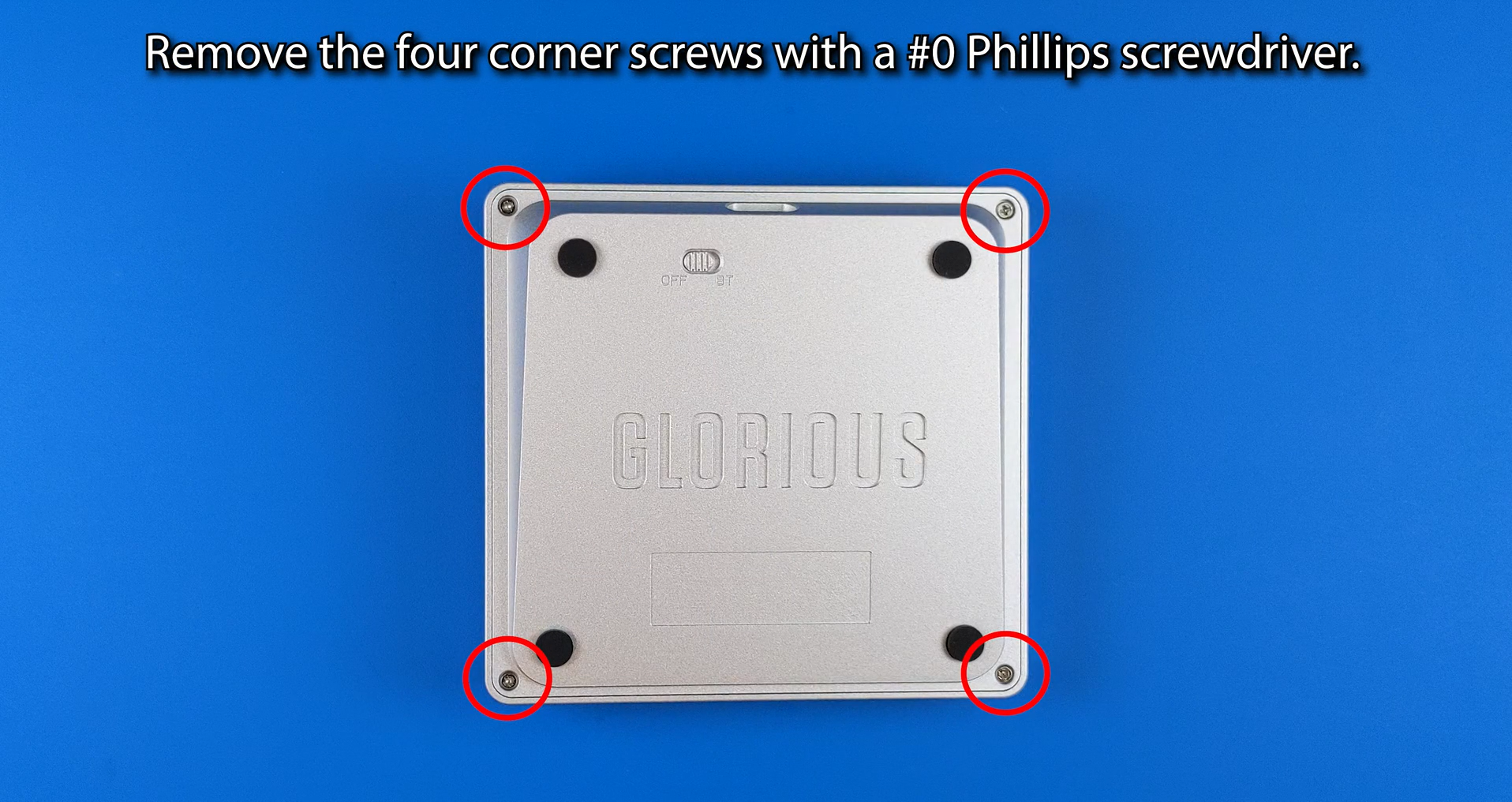

Step 6: Remove the four corner screws using a #0 Phillips screwdriver.

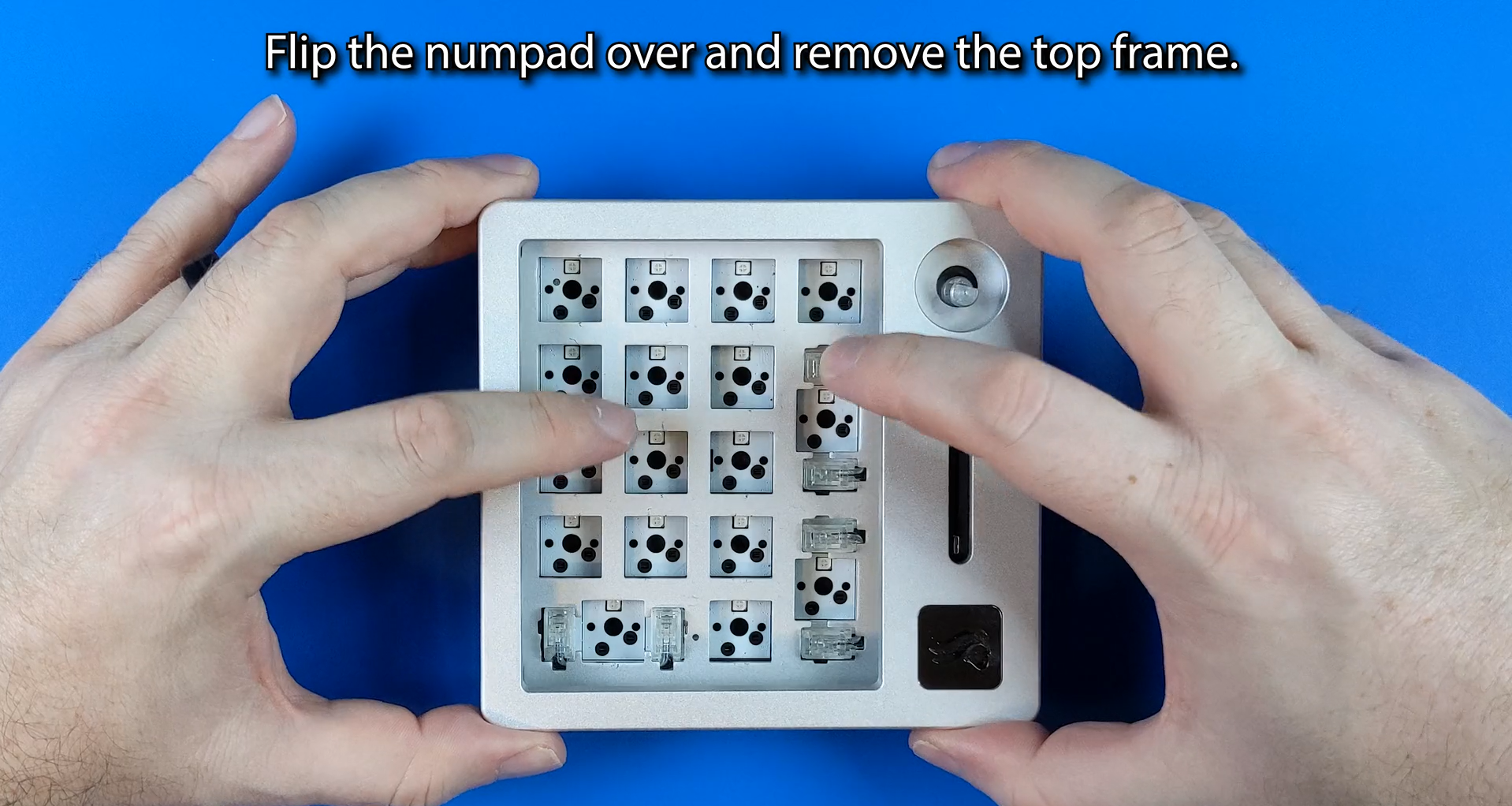

Step 7: Flip the Numpad over and remove the Top Frame.

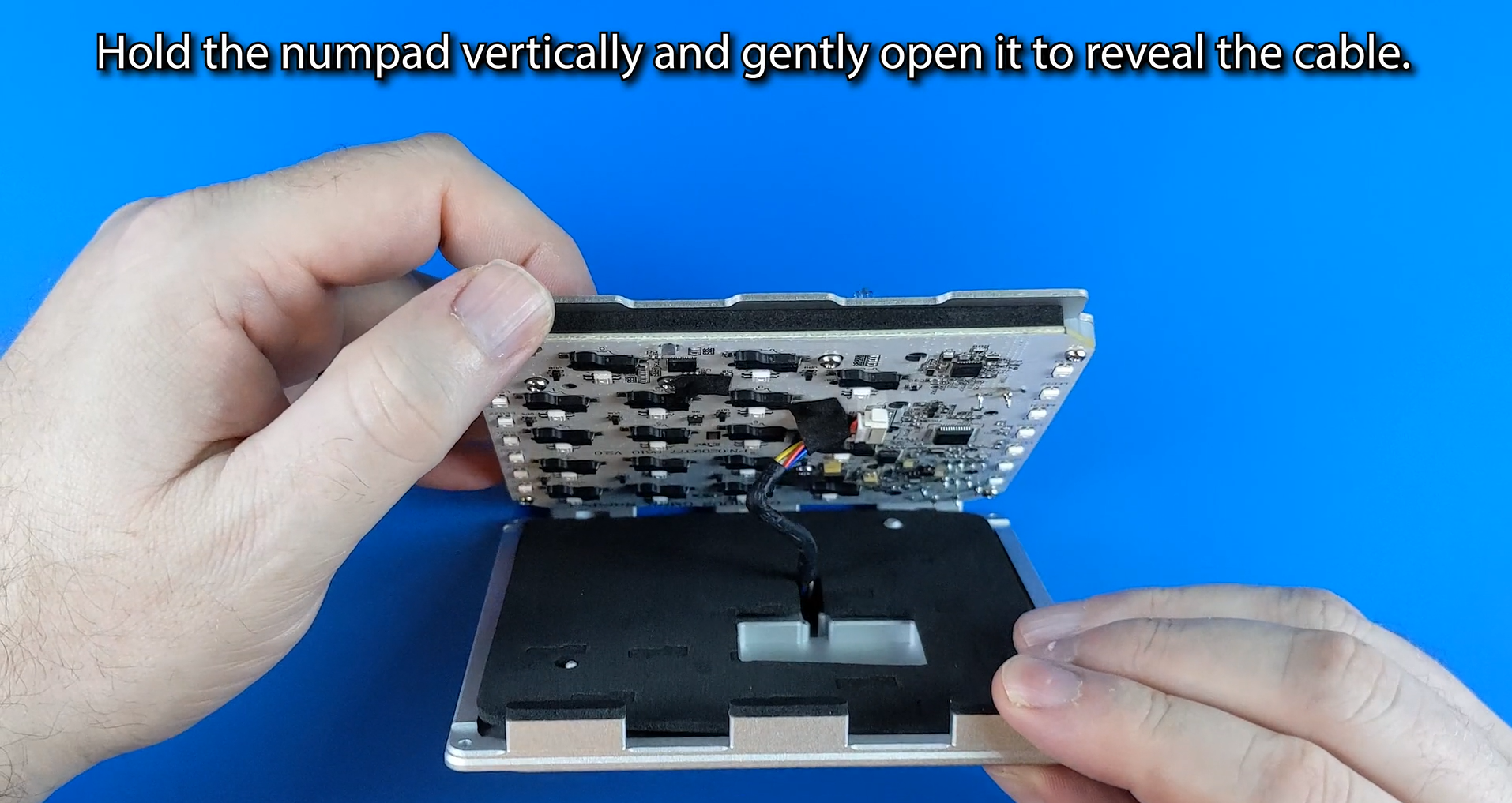

Step 8: Hold the Numpad vertically and gently open it to reveal the cable.

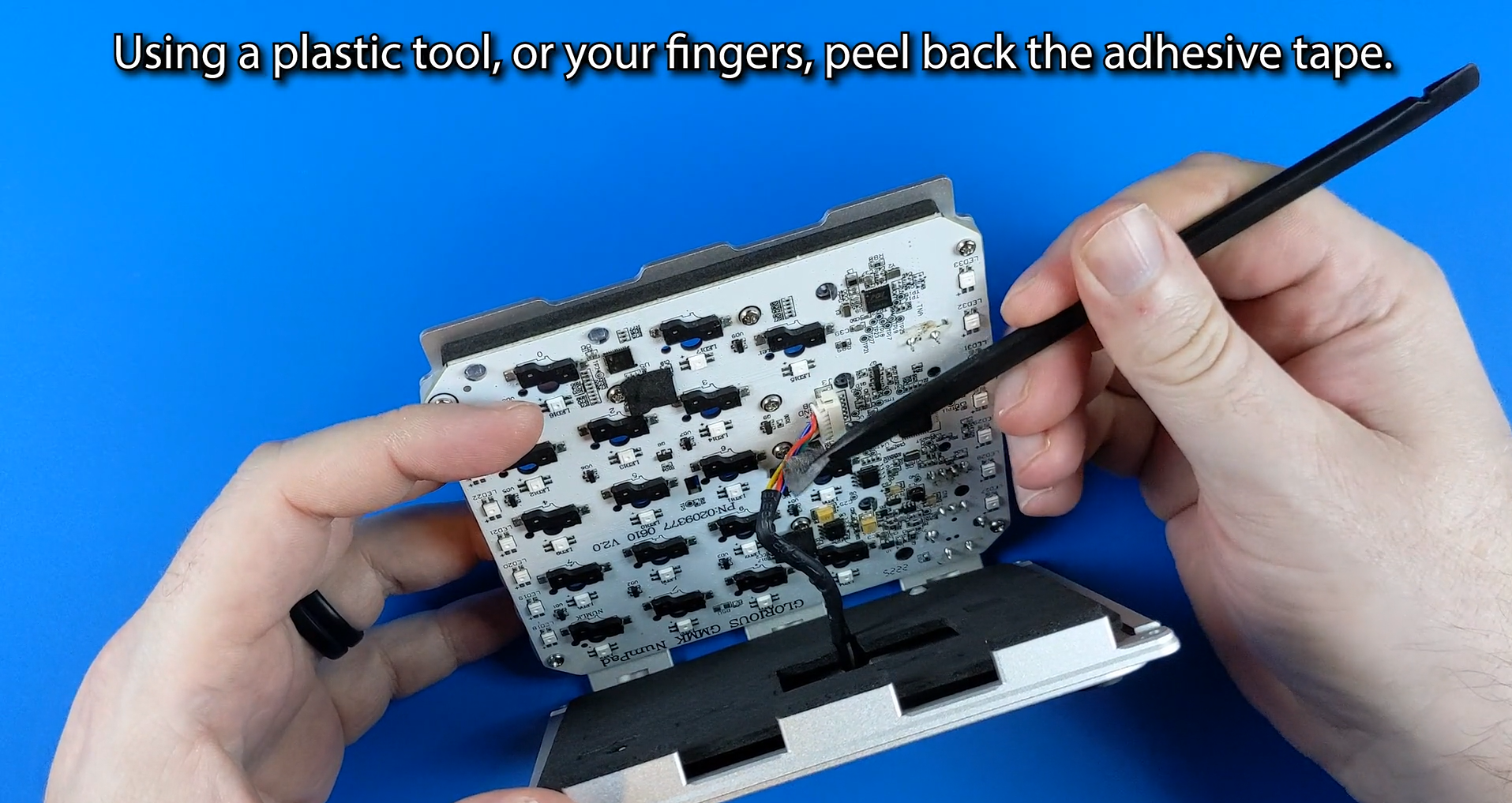

Step 9: Using a plastic tool or fingers, peel back the adhesive tape.

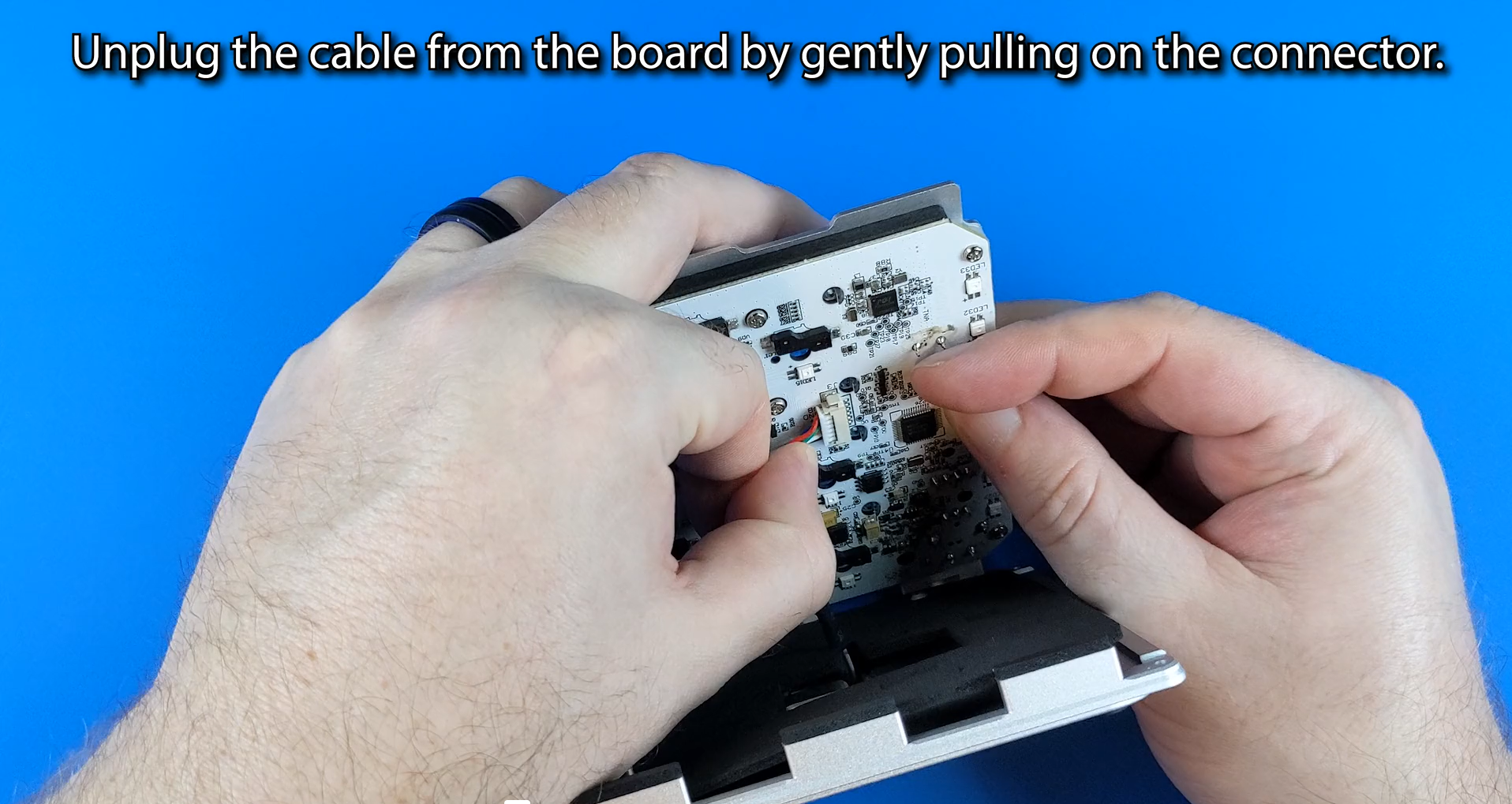

Step 10: Unplug the cable from the board by gently pulling on the connector.
Step 11: Remove the bottom foam.

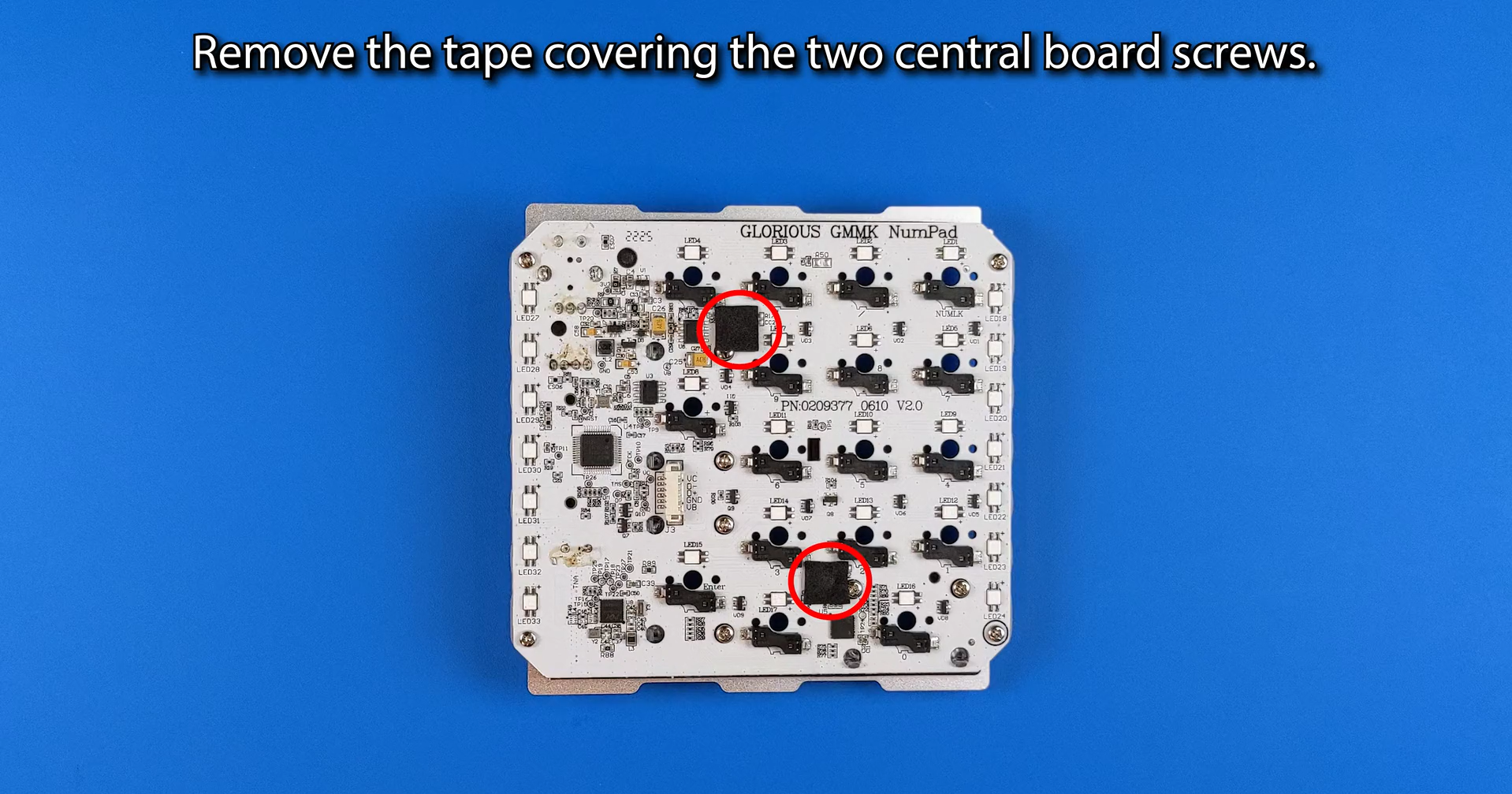

Step 12: Remove the tape covering the two central board screws.
(NOTE: These screws are unique and cannot be interchanged).

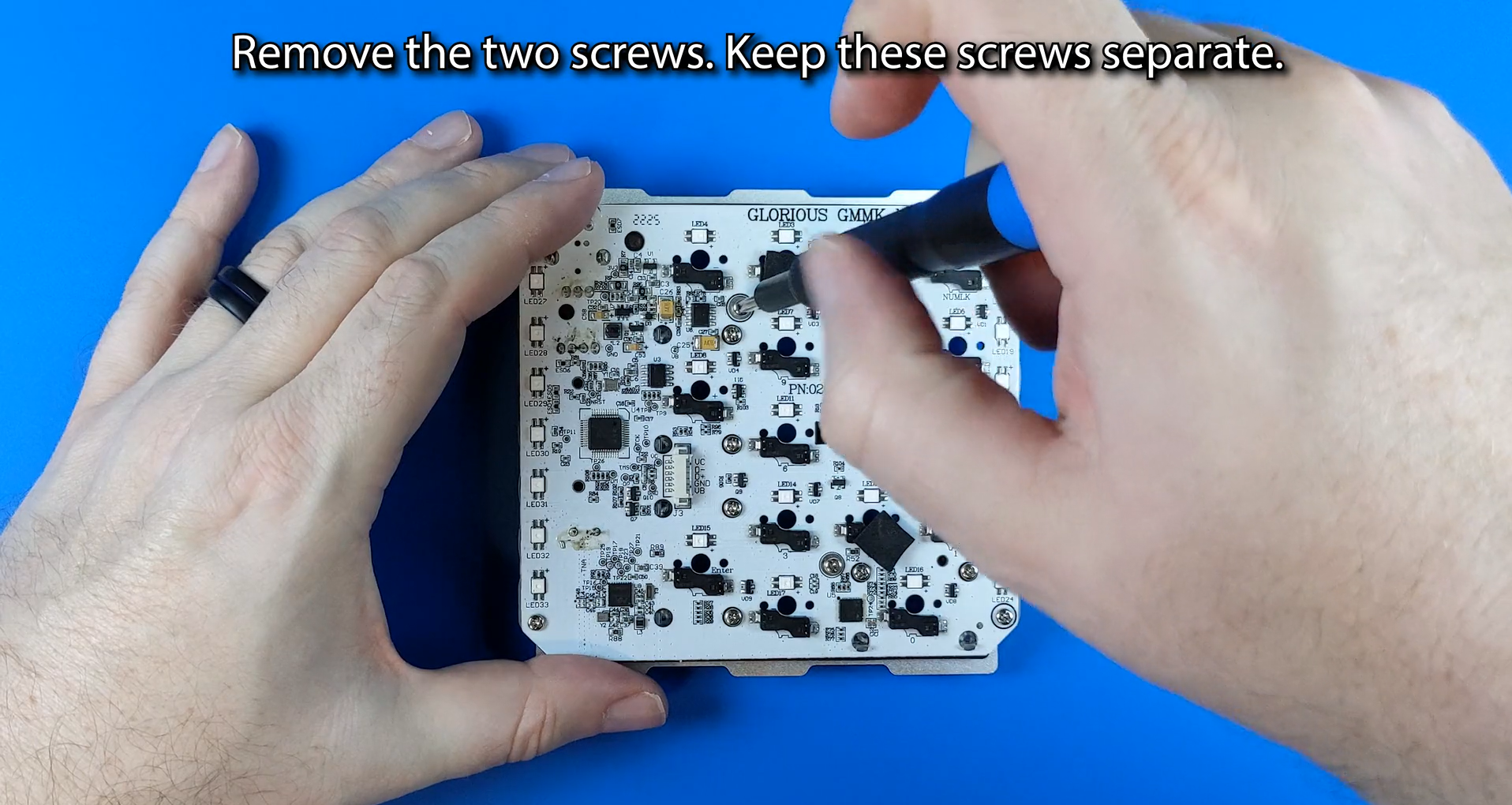

Step 13: Remove the two screws
(NOTE: These screws are unique and cannot be interchanged).

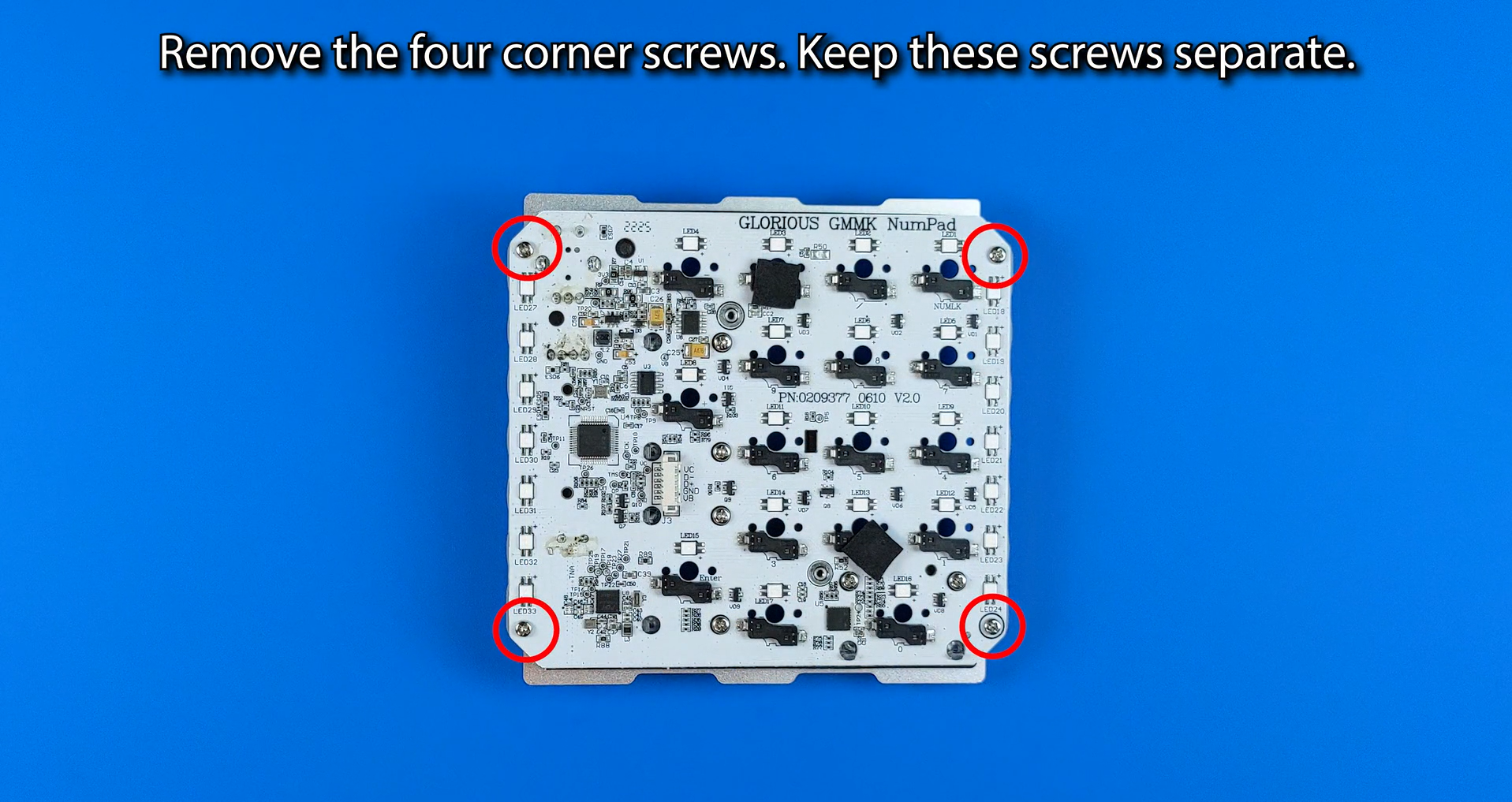

Step 14: Remove the four corner screws.
(NOTE: These screws are unique and cannot be interchanged).

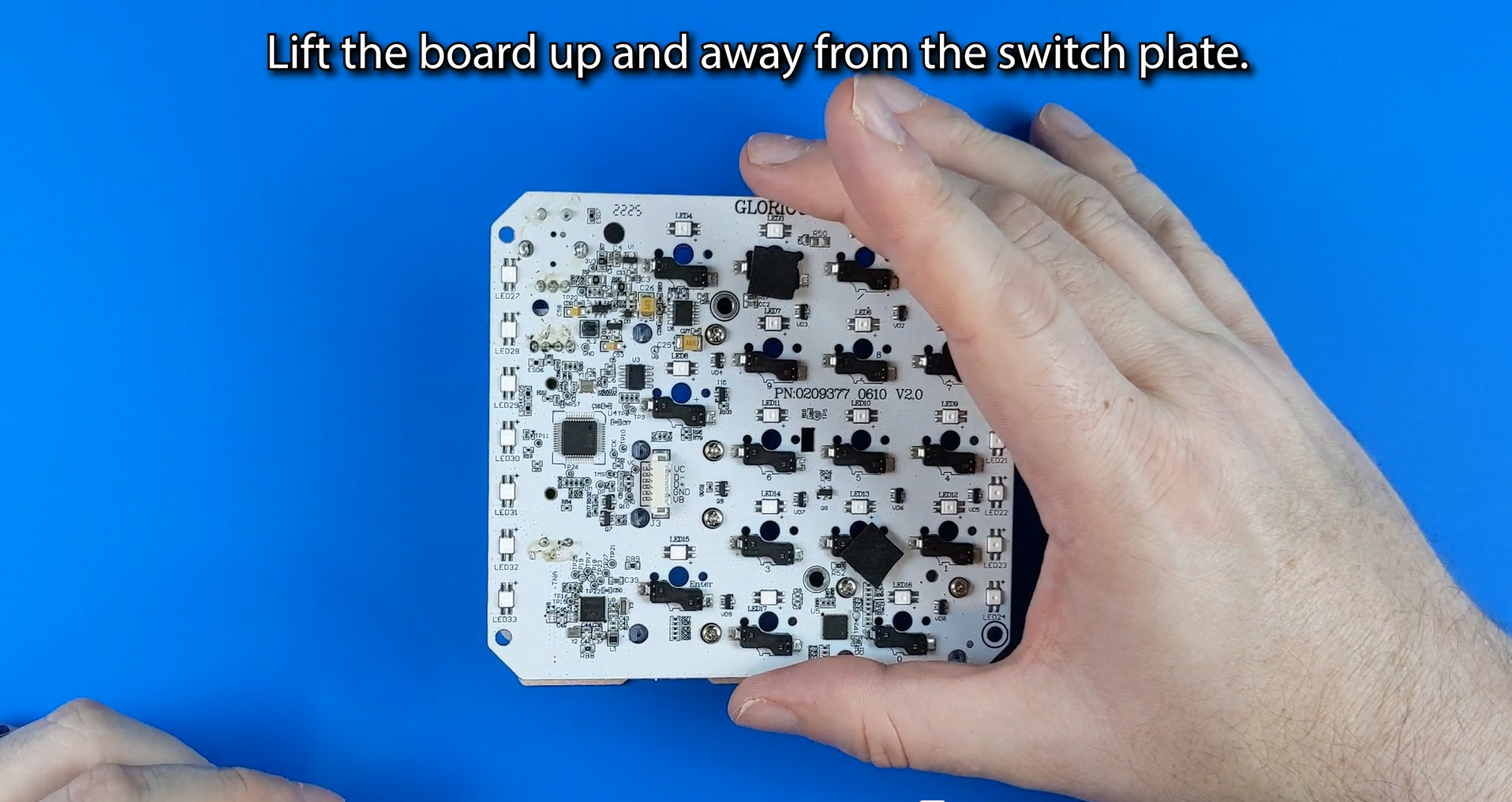

Step 15: Lift the board up and away from the switch plate.

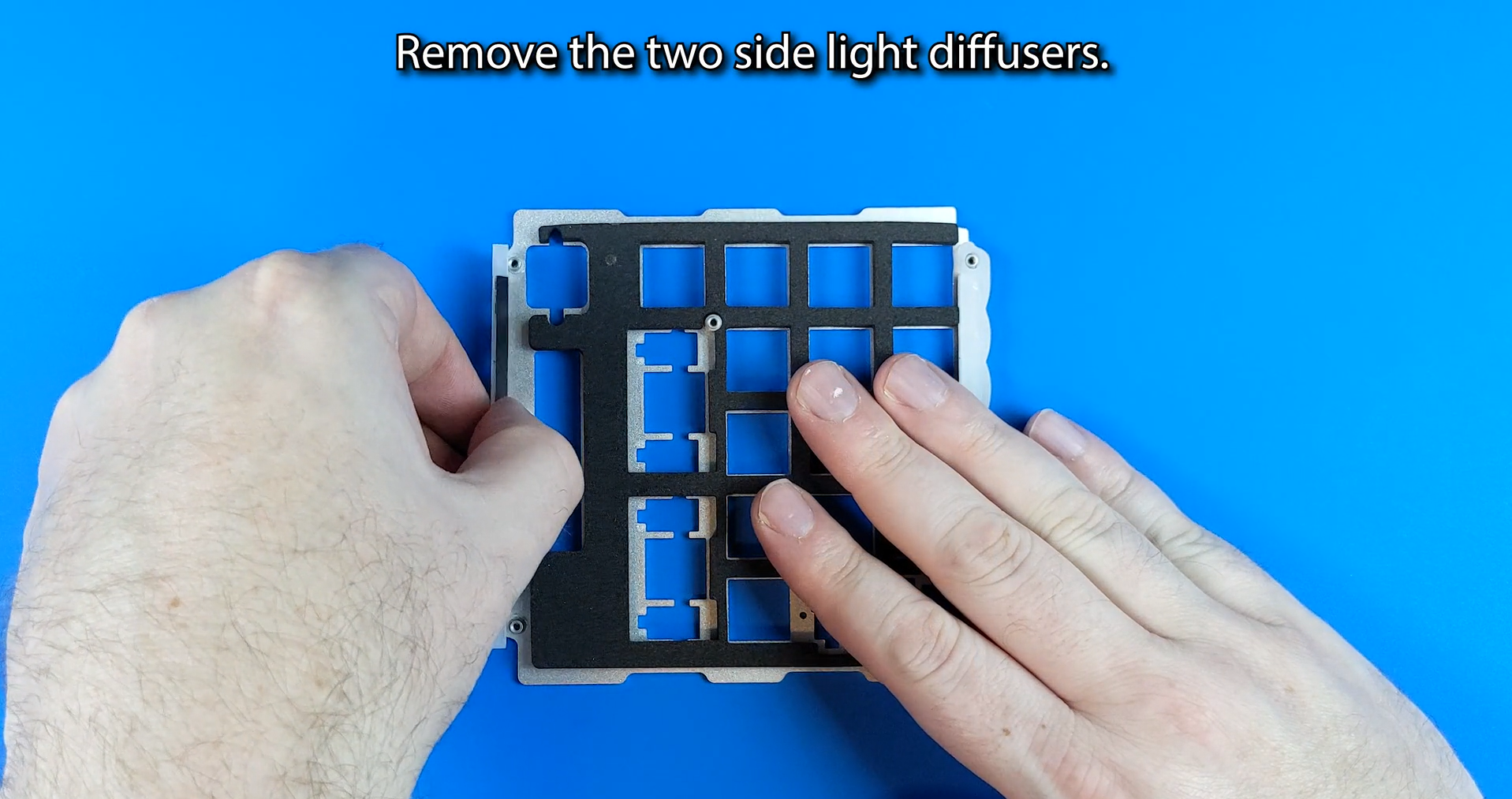

Step 16: Remove the two side light diffusers.
(NOTE: The scalloped edges of the diffusers face outward. When reinstalling, be sure the taped side of the diffuser touches the switch plate, with the scalloped edge facing outward).

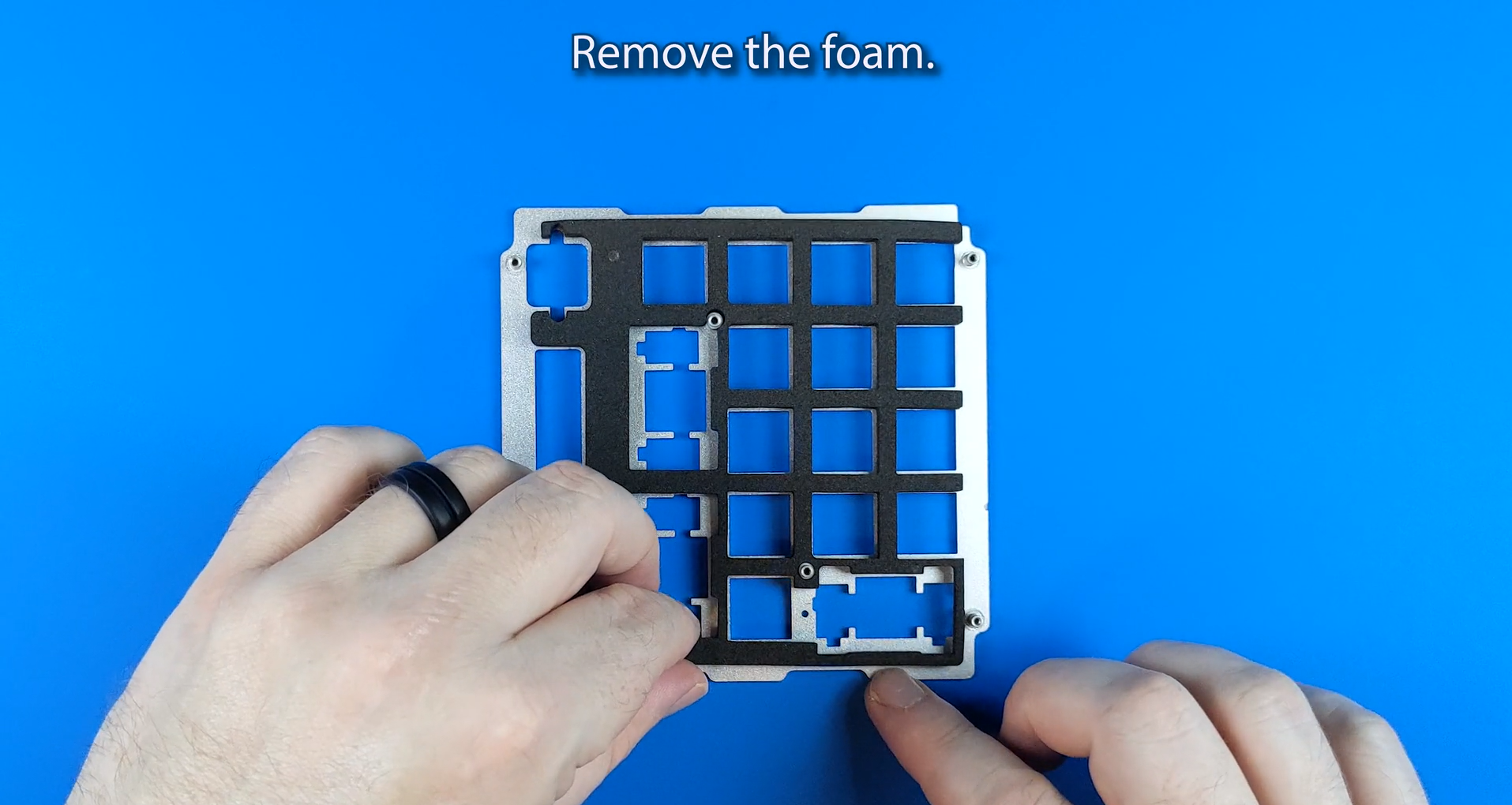

Step 17: Remove the foam

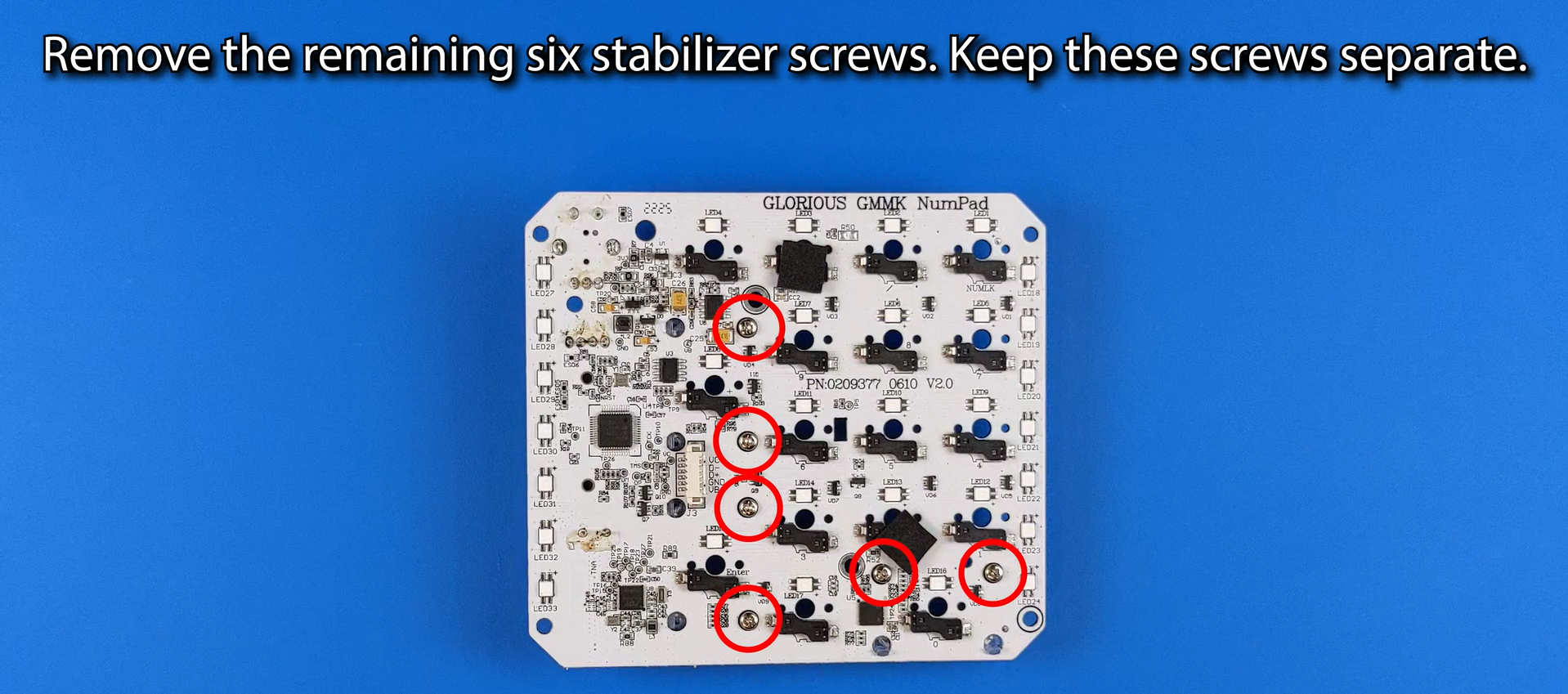

Step 18: Remove the remaining six stabilizer screws.
(NOTE: These screws are unique and cannot be interchanged).
Step 19: Lift the board up off the stabilizers.
Step 20: Replace the stabilizers on the Numpad and follow these steps in reverse order to reassemble the unit.
